Cable Carriers

.
One type
types

The right solution for any requirement. We offer a comprehensive range of standard products that gives you a wide variety of options to select the right cable carrier for your application. Likewise, we would be pleased to collaborate with you to develop a customized solution tailored to your specific needs.

Series Series
Type Types

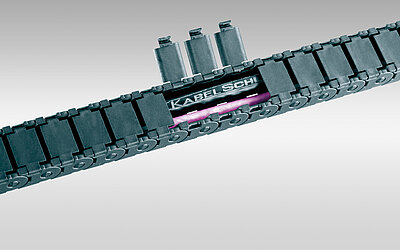

MONO series

Cable carriers for standard applications

Inner heights: 10 - 15 mm
Inner width: 6 - 40 mm
Pitch: 13 - 20 mm
Travel length: up to 1.95 m / 70 m

Types

MONO 0130/0132/0134
MONO 0180/0182/0184
MONO 0202

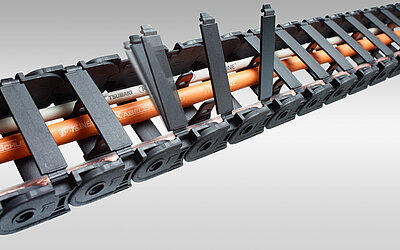

QuickTrax® series

Compact and cost-effective cable carriers in tow-component technology

Inner heights: 17.6 - 20 mm
Inner width: 15 - 65 mm
Pitch: 25 - 32 mm
Travel length: up to 2.9 m / 80 m

Types

QT0250
QT0320

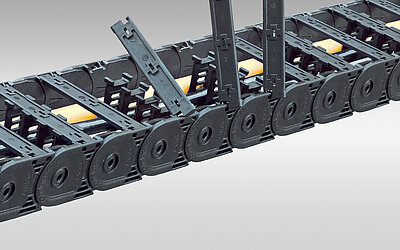

UNIFLEX Advanced series

Light, quiet all-rounder with a wide range of applications*

Inner heights: 17.5 - 80 mm
Inner width: 15 - 600 mm
Pitch: 25 - 99.5 mm
Travel length: up to 9 m / 200 m

Types

UA1250
UA1320
UA1455
UA1555
UA1665
UA1775
UA1995

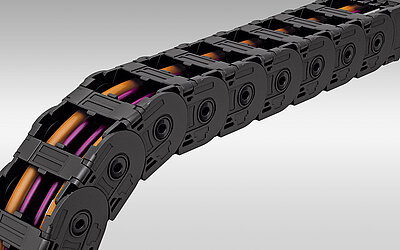

TKP35 series

Robust all-rounder with variable inner distribution

Inner heights: 32 mm
Inner width: 16 - 50 mm
Pitch: 35 mm
Travel length: up to 2.3 m

Types

TKP35

Cable Carrier Configurator

Online Engineer

Your cable carrier system is just a few clicks away. Take advantage of our online configurator and compile quickly and conveniently your individual cable carrier system with all cables and accessories. Simply enter your parameters and get suitable suggestions including all technical specifications. Save additional time and forward your configuration to us with just one click and receive our price inquiry.

Start configuration

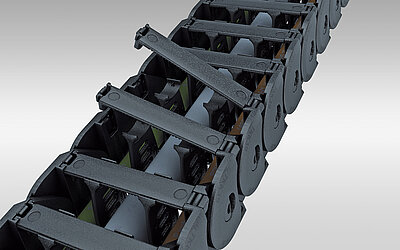

TKK series

Dirt-repellent cable carriers made of plastic

Inner heights: 39 mm
Inner width: 39 - 99 mm
Pitch: 39 mm
Travel length: up to 4.8 m / 120 m

Types

TKK39

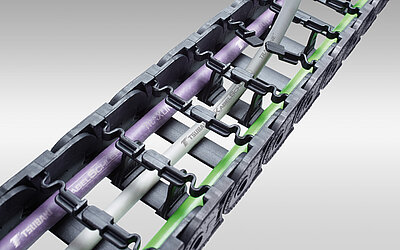

EasyTrax® series

Extremely fast cable laying thanks to easy cable insertion

Inner heights: 4.6 - 25 mm
Inner width: 7 - 78 mm
Pitch: 11.5 - 45.5 mm
Travel length: up to 4.8 m / 80 m

Types

ET0115
ET0250
ET0320
ET1455

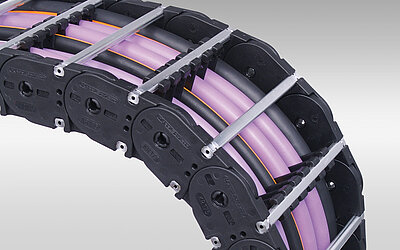

K series

Cost-effective, robust cable carrier - suitable for large additional loads

Inner heights: 36 - 58 mm
Inner width: 68 - 700 mm
Pitch: 65 - 90 mm
Travel length: up to 8.4 m / 260 m

Types

K0650
K0900

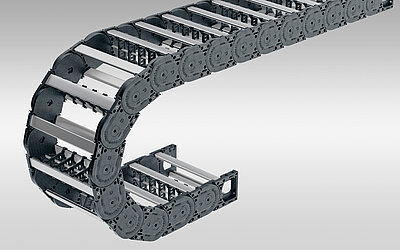

M series

Variable cable carrier with extensive accessories and stay variants

Inner heights: 19 - 98 mm
Inner width: 24 - 800 mm
Pitch: 32 - 130 mm
Travel length: up to 10.8 m / 350 m

Types

M0320
M0475
M0650
M0950
M1250
M1300

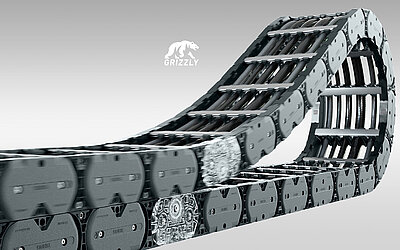

TKHP® series

High-Performance cable carriers for long travel lengths and high additional loads

Inner heights: 58 - 92 mm
Inner width: 100 - 800 mm
Pitch: 85 - 90 mm
Travel length: up to 13.5 m / 200 m / 1500 m

Types

TKHP85
TKHP90
TKHP85-R / TKHP85-RSD
TKHP90-R / TKHP90-RSD

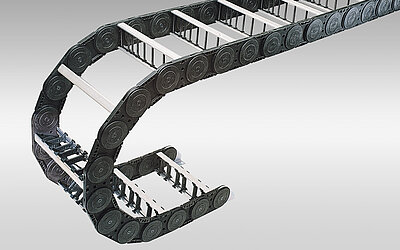

XL series

Cable carrier with large inside height

Inner heights: 108 mm
Inner width: 200 - 1000 mm
Pitch: 165 mm
Travel length: up to 11.75 m / 350 m

Types

XL1650

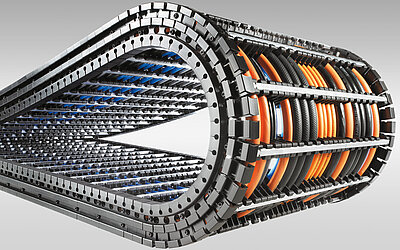

QUANTUM® series

Light, extremely quiet and low-vibration for hight speeds and accelerations

Inner heights: 28 - 72 mm
Inner width: 28 - 600 mm
Pitch: 15 - 30 mm
Travel length: up to 7.8 m / 95 m

Types

Q040
Q060
Q080
Q100

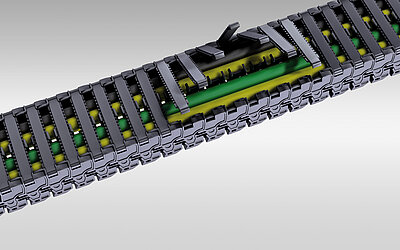

TKR series

Extremely quiet and low-vibration for highly dynamic applications*

Inner heights: 22 - 52 mm
Inner width: 20 - 200 mm
Pitch: 15 - 37 mm
Travel length: up to 4.9 m

Types

TKR0150
TKR0200
TKR0260
TKR0280
TKR0370

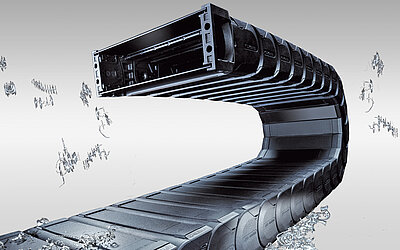

TKA series

Chip-right right to the end

Inner heights: 20.5 - 45 mm
Inner width: 15 - 250 mm
Pitch: 30.5 - 55.5 mm
Travel length: up to 6.5 m / 150 m

Types

TKA30
TKA38
TKA45
TKA55

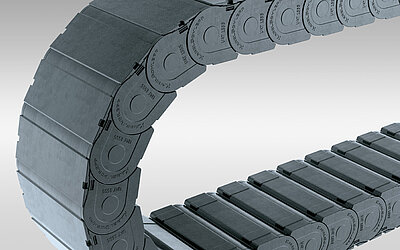

UAT series

Extreme cable protection in harsh environmental conditions

Inner heights: 50 mm
Inner width: 75 - 175 mm
Pitch: 55.5 mm
Travel length: up to 6.5 m / 150 m

Types

UAT1555

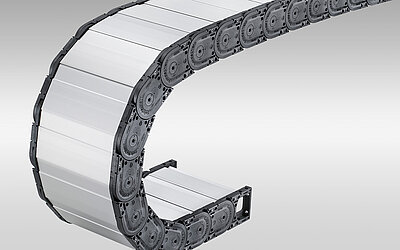

MT series

Variable, closed cable carrier with extensive range of accessories

Inner heights: 26 - 87 mm
Inner width: 24 - 800 mm
Pitch: 47.5 - 130 mm
Travel length: up to 10.8 m / 300 m

Types

MT0475
MT0650
MT0950
MT1250
MT1300

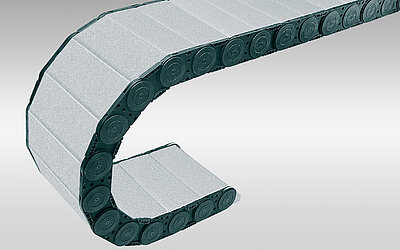

XLT series

Tubes with variable cable carriers widths

Inner heights: 105 mm
Inner width: 200 - 1000 mm
Pitch: 165 mm
Travel length: up to 11.75 m / 350 m

Types

XLT1650

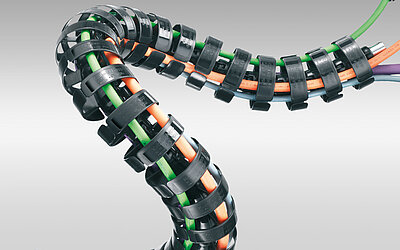

ROBOTRAX® System

Cable carrier for 3D movements

Inner heights: 10 - 48 mm
Inner width: 27 - 74 mm
Pitch: 21.5 - 50 mm
Travel length: -

Types

R040
R056
R075
R085
R100
R140x

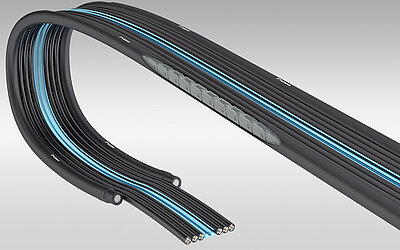

FLATVEYOR®

Cable management system solution for cleanroom applications

Inner heights: mm
Inner width: mm
Pitch: mm
Travel length: up to 2.8 m

Types

FLATVEYOR

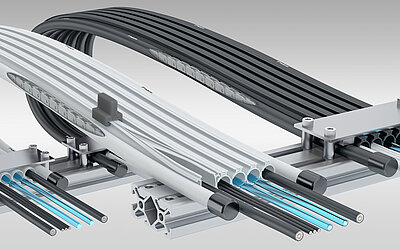

FLATVEYOR ZP

Sustainable cable management system solution for cleanroom applications

Inner heights: mm
Inner width: mm
Pitch: mm
Travel length: up to 1.8 m

Types

Flatveyor ZP

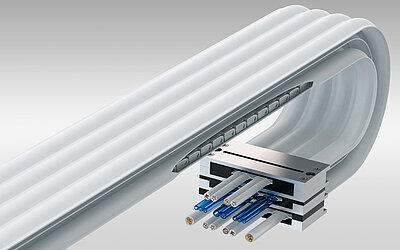

CLEANVEYOR®

For highly requirement of cleanroom applications, achieve to ISO Class 1

Inner heights: mm
Inner width: mm
Pitch: mm
Travel length: up to 2.8 m

Types

Cleanveyor

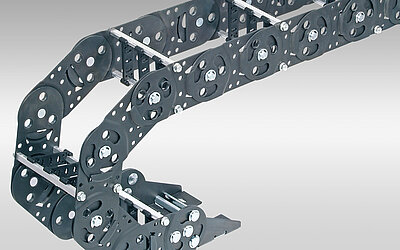

LS/LSX-Series

Cost-effective steel chains with light design

Inner heights: 48 - 58 mm
Inner width: 54 - 584 mm
Pitch: 105 mm
Travel length: up to 9.5 m

Types

LS/LSX1050

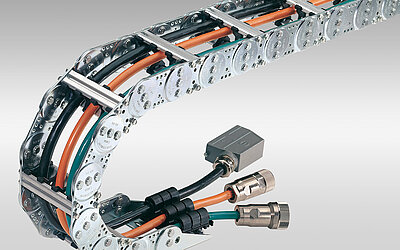

S/SX series

Extremely robust and sturdy steel cable carriers

Inner heights: 26 - 578 mm
Inner width: 35 - 1650 mm
Pitch: 65 - 550 mm
Travel length: up to 24.9 m

Types

S/SX0650
S/SX0950
S/SX1250
S/SX1800
S/SX2500
S/SX3200
S/SX5000
S/SX6000
S/SX7000
S/SX8000
S/SX9000

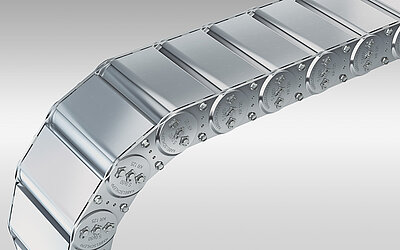

S/SX Tubes series

Extremely robust and sturdy covered steel cable carriers

Inner heights: 30 - 104 mm
Inner width: 65 - 938 mm
Pitch: 65 - 180 mm
Travel length: up to 17.8 m

Types

S/SX0650
S/SX0950
S/SX1250
S/SX1800
