S/SX3200

Pitch
320 mm

Inner height
220 mm

Chain widths
265 - 1500 mm

Bending radii
470 - 1785 mm

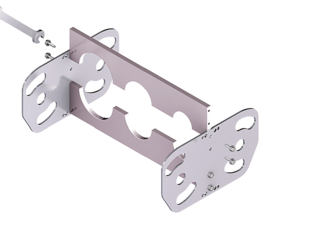

Stay Variants

Optimum cable routing in the neutral bending line. Split version for easy cable routing.
Inside/outside: Threaded joint easy to release.

more details

Stay variant RR available as a customized design. Please contact us.

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR [mm]	H [mm]	L_B [mm]	U_B [mm]
470	1390	2757	1260
670	1790	3385	1460
870	2190	4013	1660
1075	2600	4657	1865
1275	3000	5286	2065
1480	3410	5930	2270
1785	4020	6888	2575

Installation height Hz: Hz = H + 10 mm/m

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Intrinsic cable carrier weight qk = 41 kg/m. For other inner widths, the maximum additional load changes.

Speed
up to 1 m/s

Acceleration
up to 2.5 m/s2

Travel length
up to 24 m

Additional load
up to 150 kg/m
