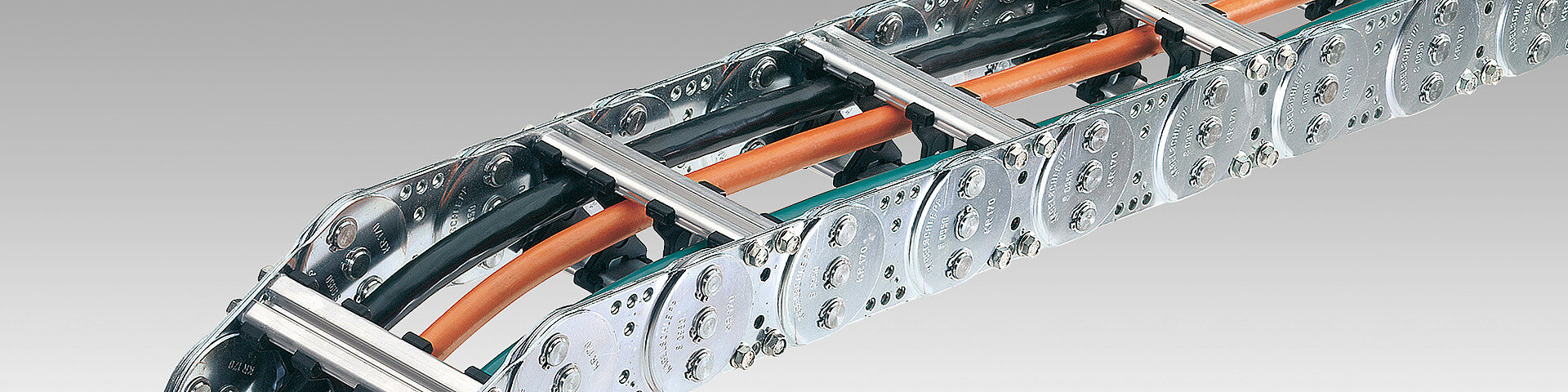

S/SX series

S/SX series

Extremely robust and sturdy steel cable carriers

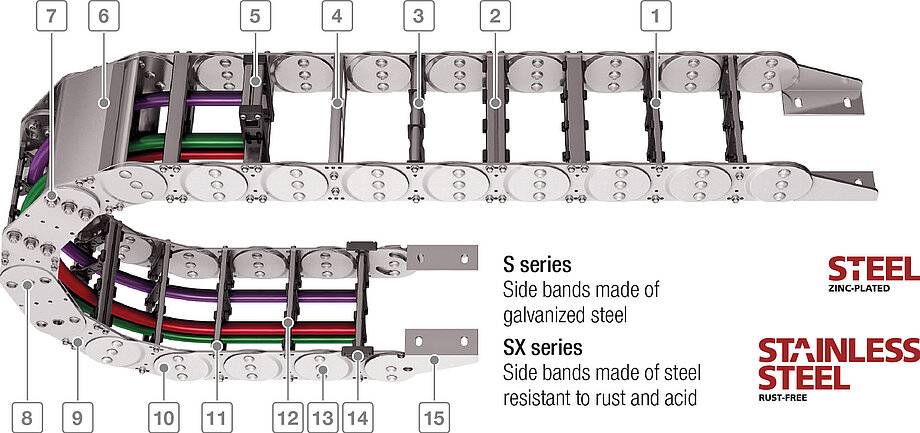

  1. All stays available in 1 mm width sections
  2. Aluminum stays with 4 screw-fixing points for extreme loads
  3. Roller stays
  4. Aluminum hole stays
  5. Mounting frame stays
  6. Aluminum cover available in 1 mm width sections
  7. Joint design with hardened bolts for long service life
  8. Bolted and riveted joint connections possible
  9. Straight link plate design (S/SX1252/1252B and S/SX1802/1802B)
  10. Cranked link plate design
  11. Different separation options for the cables
  12. Opening inside and outside
  13. Extremely robust side bands
  14. Replaceable glide shoes
  15. End connectors for different connection variants
Features

Features

  • Extremely robust, sturdy steel cable carriers for heavy mechanical loads and rough environmental conditions
  • Side bands made of galvanized steel (S series) or corrosion-resistant and acid-resistant steel (SX series) in three qualities: ER 1 / ER 1S and ER 2
  • Very sturdy link plates, each consisting of two individual plates
  • Very extensive unsupported lengths even with large additional loads
  • Bolted stay systems, solid end connectors
  • Joint design with multi stroke system and hardened bolt
  • Explosion protection with classification EX II 2 GD as per ATEX RL

The design
Proven steel cable carriers with extremely sturdy link plates and dedicated joint design with multi stroke system and hardened bolt. The extremely sturdy design allows extensive unsupported lengths and high possible additional loads.

Inner width (Bi) in 1 mm increments
Long travel length
High additional load
Opens inward/outward
Covered cable carrier
Sliding dividers
Height separation possible
Ex-protection-material
Heat-resistant
Cold-resistant
Resistant to hot chips
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)

Sandwich design:
Link plates consist of two plates

Glide shoes available for gliding applications

Stroke system with hardened bolt and circlips

Also available as covered variants with cover system or steel band cover.

Types

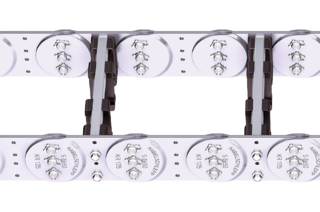

S/SX0650
  • Inner height [hi]: 26 - 34 mm
  • Chain width [Bk]: 70 - 500 mm
  • Pitch [t]: 65 mm
  • Bending [KR]: 75 - 400 mm
more details

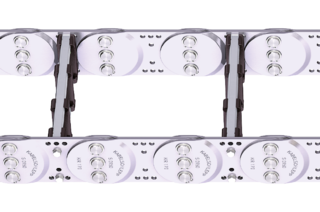

S/SX0950
  • Inner height [hi]: 42 - 50 mm
  • Chain width [Bk]: 125 - 600 mm
  • Pitch [t]: 95 mm
  • Bending [KR]: 125 - 600 mm
more details

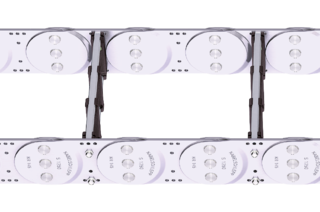

S/SX1250
  • Inner height [hi]: 66 - 76 mm
  • Chain width [Bk]: 130 - 800 mm
  • Pitch [t]: 125 mm
  • Bending [KR]: 145 - 1000 mm
more details

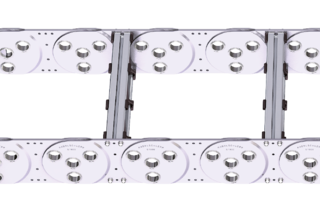

S/SX1800
  • Inner height [hi]: 104 - 110 mm
  • Chain width [Bk]: 180 - 1000 mm
  • Pitch [t]: 180 mm
  • Bending [KR]: 265 - 1300 mm
more details

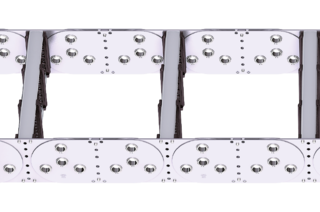

S/SX2500
  • Inner height [hi]: 180 - 183 mm
  • Chain width [Bk]: 250 - 1200 mm
  • Pitch [t]: 250 mm
  • Bending [KR]: 365 - 1395 mm
more details

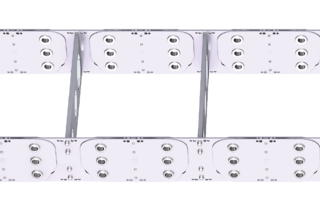

S/SX3200
  • Inner height [hi]: 220 mm
  • Chain width [Bk]: 265 - 1500 mm
  • Pitch [t]: 320 mm
  • Bending [KR]: 470 - 1785 mm
more details

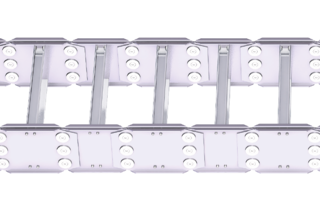

S/SX5000
  • Inner height [hi]: 150 mm
  • Chain width [Bk]: 250 - 1200 mm
  • Pitch [t]: 200 mm
  • Bending [KR]: 500 - 1200 mm
more details

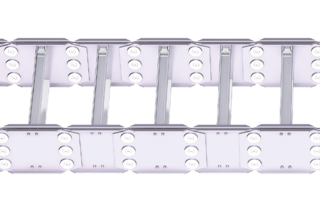

S/SX6000
  • Inner height [hi]: 240 mm
  • Chain width [Bk]: 300 - 1500 mm
  • Pitch [t]: 320 mm
  • Bending [KR]: 700 - 1500 mm
more details

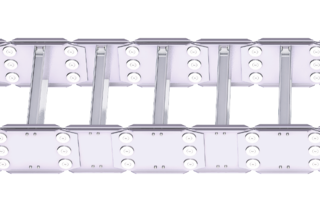

S/SX7000
  • Inner height [hi]: 370 mm
  • Chain width [Bk]: 350 - 1800 mm
  • Pitch [t]: 450 mm
  • Bending [KR]: 900 - 2400 mm
more details

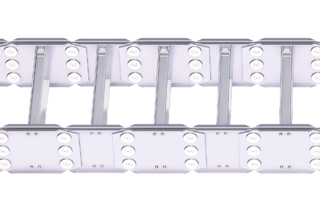

S/SX8000
  • Inner height [hi]: 578 mm
  • Chain width [Bk]: 350 - 1800 mm
  • Pitch [t]: 550 mm
  • Bending [KR]: 900 - 2400 mm
more details
S/SX9000
more details
Type hi [mm] Bi [mm] t [mm] KR [mm]
S/SX0650 26 - 34 35 - 465 65 75 - 400
S/SX0950 42 - 50 82 - 563 95 125 - 600
S/SX1250 66 - 76 82 - 752 125 145 - 1000
S/SX1800 104 - 110 121 - 941 180 265 - 1300
S/SX2500 180 - 183 174 - 1125 250 365 - 1395
S/SX3200 220 181 - 1416 320 470 - 1785
S/SX5000 150 133 - 1083 200 500 - 1200
S/SX6000 240 177 - 1377 320 700 - 1500
S/SX7000 370 200 - 1650 450 900 - 2400
S/SX8000 578 200 - 1650 550 900 - 2400
S/SX9000
