S/SX0650

S/SX0650

Pitch
65 mm

Inner heights
26 - 34 mm

Chain widths
70 - 500 mm

Bending radii
75 - 400 mm

Stay Variants

Stay Variants

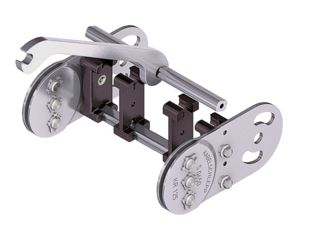

S/SX0650 RS1
Frame stay narrow “The standard”

Aluminum profile bars for light to medium loads.
Outside: release by turning by 90°.
Inside: Threaded joints easy to release.

more details

S/SX0650 RS2
Frame stay narrow, bolted

Aluminum profile bars for light to medium loads. Simple threaded joint.
Outside/inside: Threaded joints easy to release.

more details

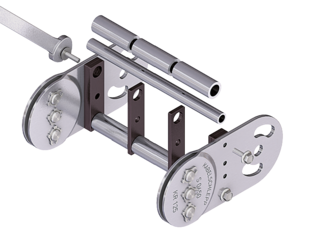

S/SX0650 RR
Frame stay, tube version

Steel rolling stays with gentle cable support and steel dividers. Ideal for using media hoses with soft sheathing.
Inside/outside: Screw connection detachable.

more details

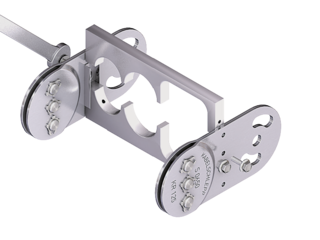

S/SX0650 LG
Frame stay, split

Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
Inside/outside: Threaded joint easy to release.

more details

Additional stay variants on request

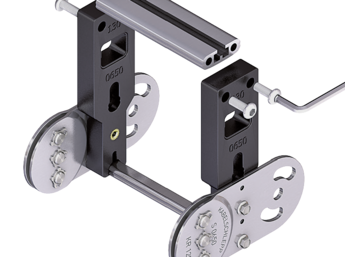

Aluminum stay RMA

For guiding very large cable diameters

S/SX tubes

Also available as covered variants with cover system or steel band cover. More information can be found at “S/SX tubes”.

Installation dimensions

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR [mm]	H [mm]	L_B [mm]	U_B [mm]
75	225	496	230
95	265	558	250
115	305	621	270
125	325	653	280
135	345	684	290
145	365	716	300
155	385	747	310
175	425	810	330
200	475	888	355
250	575	1045	405
300	675	1202	455
400	875	1516	555

Installation height Hz: Hz = H + 10 mm/m

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Intrinsic cable carrier weight qk = 4.5 kg/m. For other inner widths, the maximum additional load changes.

Speed
up to 2.5 m/s

Acceleration
up to 5 m/s²

Travel length
up to 5.8 m

Additional load
up to 30 kg/m

GLIDING ARRANGEMENT

Speed
up to 1 m/s

Acceleration
up to 2 m/s²

Travel length
on request

Additional load
up to 30 kg/m

The gliding cable carrier must be guided in a channel.

Glide shoes have to be used for gliding applications.
