S/SX0650 RS1

S/SX0650 RS1

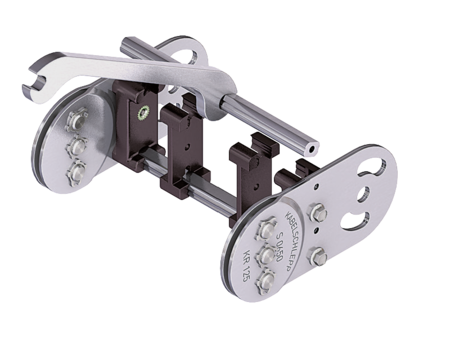

Aluminum stay RS 1 – frame stay narrow

Properties

  • Extremely quick to open and close
  • Aluminum profile bars for light to medium loads.
  • Available customized in 1 mm width sections.
  • Outside: release by rotating 90°.
  • Inside: Threaded joint easy to release.

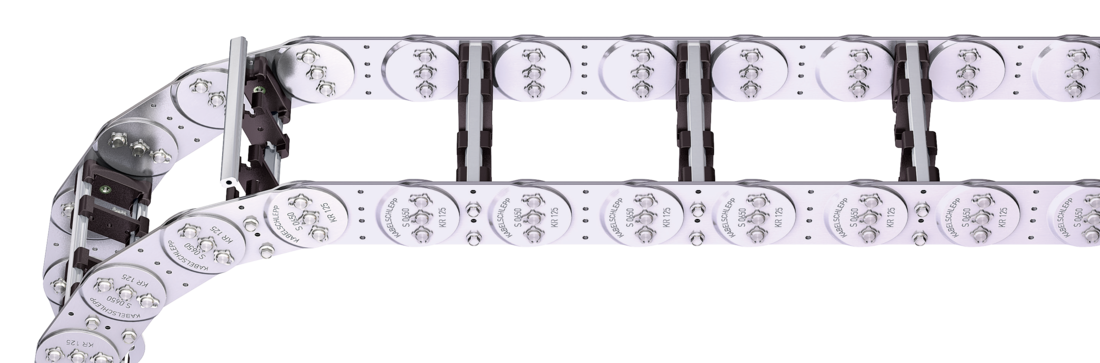

Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bk 100 - 300 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi"><strong>B<sub>i</sub></strong><br>[mm]</th> <th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">65</td> <td class="hi red">31</td> <td class="hg">50</td> <td class="hgdash">56</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi"> 65 - 265 </td> <td class="bst red"> 85 - 285 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">BSt + 15</td> <td class="bef">BSt + 20</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">3.95 - 4.82</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
75 95 115 125 135 145 155 175 200 250 300 400

Order example

SX0650
Type
180
BSt [mm]
RS1
Stay variant
135
KR [mm]
St
Material
-
1430
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2nd chain link for stay mounting (HS). As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping onto a socket (available as an accessory). The socket additionally acts as a spacer between the dividers and is available in 1 mm increments between 3 – 50 mm (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A11.51310

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A11.513102

The dividers can be moved in the cross section.

Order example

TS1
Divider system
A
Version
3
nT
-
VD0
-
VD1
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT].

If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order. The end pieces are part of the divider system and don‘t have to be ordered separately.

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Connection surface
I – connection surface inside (standard)
A – connecting surface outside

Caution: The standard connection variant FAI/MAI is only possible from Bk of 70 mm.

Order example

Steel
Steel
End connector
F
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
