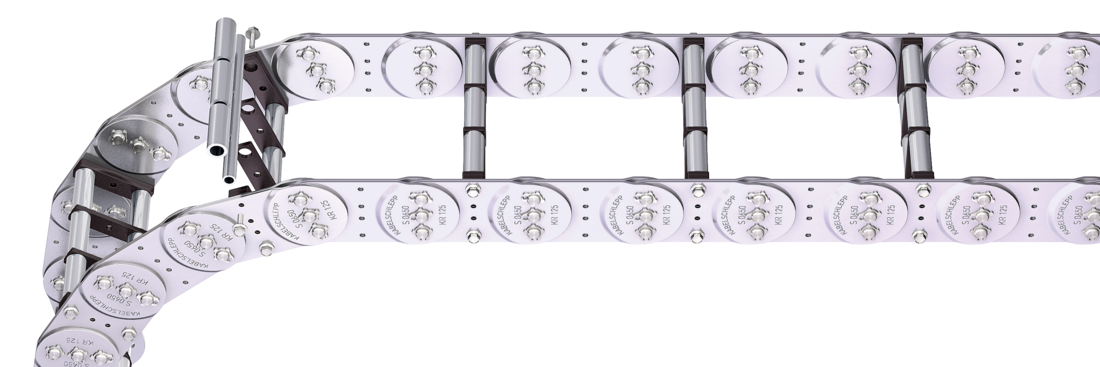

S/SX0650 RR

S/SX0650 RR

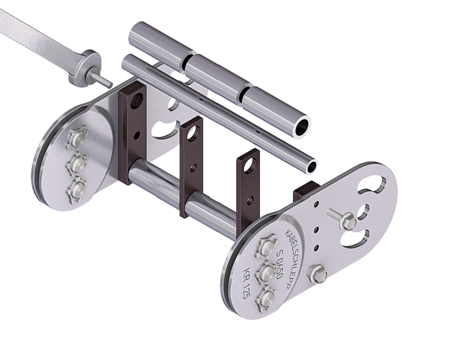

Tube stay RR – frame stay, tube version

Properties

  • Steel rolling stays with gentle cable support and plastic dividers. Ideal for using media hoses with soft sheathing. Easy screw connection.
  • Available customized in 1 mm width sections.
  • Inside/outside: Screw connection detachable
  • Option: Divider systems made from steel and stainless steel ER 1, ER 1S.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bk 100 - 400 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi"><strong>B<sub>i</sub></strong><br>[mm]</th> <th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">65</td> <td class="hi red">26</td> <td class="hg">50</td> <td class="hgdash">56</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi"> 69 - 369 </td> <td class="bst red"> 85 - 385 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">BSt + 15</td> <td class="bef">BSt + 20</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">4.77 - 8.67</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
75 95 115 125 135 145 155 175 200 250 300 400

Order example

S0650
Type
•
180
BSt [mm]
•
RR
Stay variant
•
135
KR [mm]
•
St
Material
-
1430
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS).

The dividers are fixed through the tubes. The tube additionally serves as a spacer between the dividers (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
B202521–

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
B2025212

Order example

TS1
Divider system
•
B
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VD0
-
VD0
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Connection surface
I – connection surface inside (standard)
A – connecting surface outside

Caution: The standard connection variant FAI/MAI is only possible from Bk of 70 mm.

Order example

Steel
Steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
