S/SX Tubes series

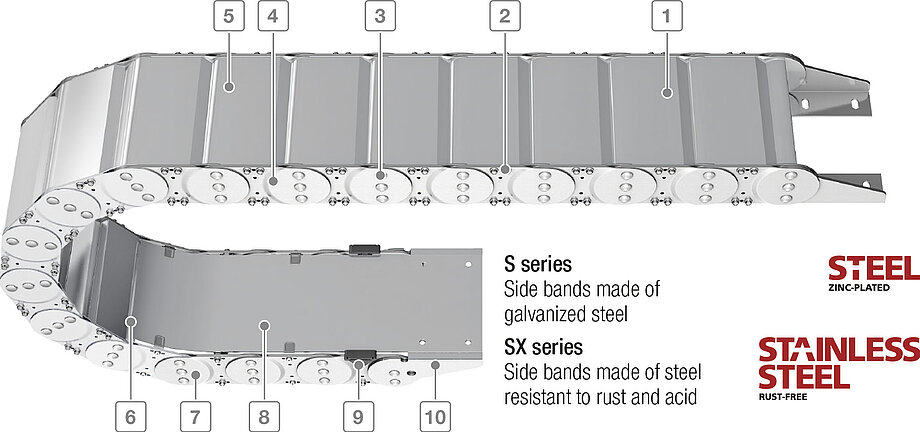

Extremely robust and sturdy covered steel cable carriers

Aluminum covers available in 1 mm width sections
4 bolted aluminum covers for extreme loads
Joint design with hardened bolts for long service life
Cranked link plate design
Can be opened on the inside and the outside for cable laying
Different separation options for the cables
Extremely robust side bands, galvanized or stainless steel
Steel band cover available in 1 mm width sections
Replaceable glide shoes
End connectors for different connection variants

Features

Extremely robust, sturdy steel cable carriers for heavy mechanical loads and rough environmental conditions
Side bands made of galvanized steel (S series) or corrosion-resistant and acid-resistant steel (SX series) in three qualities: ER 1 / ER 1S and ER 2
Very sturdy link plates, each consisting of two individual plates
Very extensive unsupported lengths even with large additional loads
Joint design with multi stroke system and hardened bolt
Bolted stay systems, solid end connectors
Explosion protection with classification EX II 2 GD as per ATEX RL

The design
Proven steel cable carriers with extremely sturdy link plates and dedicated joint design with multi stroke system and hardened bolt. The extremely sturdy design allows extensive unsupported lengths and high possible additional loads.
