S/SX0650
S/SX0650
Pitch
65 mm
65 mm
Inner height
30 mm
30 mm
Chain widths
100 - 500 mm
100 - 500 mm
Bending radii
115 - 400 mm
115 - 400 mm
Stay Variants
S/SX0650 Tubes RMD
more details

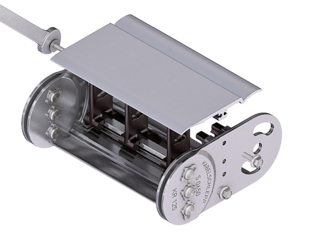

Stay Variants
S/SX0650 Tubes RMD
Aluminum cover system
- Bolted aluminum covers for maximum stability.
- For applications generating chips or coarse contamination.
- Inside/outside: Threaded joint easy to release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 115 | 305 | 621 | 270 |
| 125 | 325 | 653 | 280 |
| 135 | 345 | 684 | 290 |
| 145 | 365 | 716 | 300 |
| 155 | 385 | 747 | 310 |
| 175 | 425 | 810 | 330 |
| 200 | 475 | 888 | 355 |
| 250 | 575 | 1045 | 405 |
| 400 | 875 | 1516 | 555 |
Installation height Hz: Hz = H + 10 mm/m
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 4.5 kg/m. For other inner widths, the maximum additional load changes.
For cable carriers with an aluminum cover system, a higher intrinsic cable carrier weight is to note.
Speed
up to 2.5 m/s
Acceleration
up to 5 m/s2
Travel length
up to 5.8 m
Additional load
up to 30 kg/m
GLIDING ARRANGEMENT
Speed
up to 1 m/s
Acceleration
up to 2 m/s2
Travel length
on request
Additional load
up to 30 kg/m
The gliding cable carrier must be guided in a channel.
Glide shoes have to be used for gliding applications.
