S/SX0950
S/SX0950
Pitch
95 mm
95 mm
Inner height
44 mm
44 mm
Chain widths
125 - 600 mm
125 - 600 mm
Bending radii
170 - 600 mm
170 - 600 mm
Stay Variants

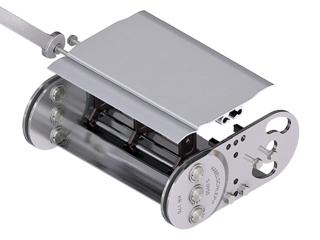

S/SX0950 Tubes RMD
more details
Stay Variants
S/SX0950 Tubes RMD
Aluminum cover system
- Bolted aluminum covers for maximum stability.
- For applications generating chips or coarse contamination.
- Inside/outside: Threaded joint easy to release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 170 | 442 | 914 | 395 |
| 200 | 502 | 1008 | 425 |
| 260 | 622 | 1197 | 485 |
| 290 | 682 | 1291 | 515 |
| 320 | 742 | 1385 | 545 |
| 350 | 802 | 1480 | 575 |
| 410 | 922 | 1668 | 635 |
| 600 | 1302 | 2264 | 825 |
Installation height Hz: Hz = H + 10 mm/m
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 7.6kg/m. For other inner widths, the maximum additional load changes.
For cable carriers with an aluminum cover system, a higher intrinsic cable carrier weight is to note.
Speed
up to 2.5 m/s
Acceleration
up to 5 m/s2
Travel length
up to 8.8 m
Additional load
up to 45 kg/m
GLIDING ARRANGEMENT
Speed
up to 1 m/s
Acceleration
up to 2 m/s2
Travel length
on request
Additional load
up to 45 kg/m
The gliding cable carrier must be guided in a channel.
Glide shoes have to be used for gliding applications.
