S/SX1250
S/SX1250
Pitch
125 mm
125 mm
Inner height
69 mm
69 mm
Chain widths
150 - 800 mm
150 - 800 mm
Bending radii
260 - 1000 mm
260 - 1000 mm
Stay Variants
S/SX1250 Tubes RMD
more details
Stay Variants
S/SX1250 Tubes RMD

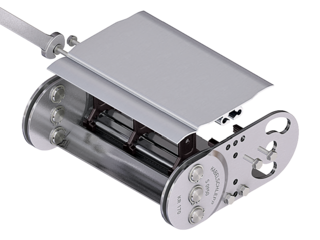

Aluminum cover system
- Bolted aluminum covers for maximum stability.
- For applications generating chips or coarse contamination.
- Inside/outside: Threaded joint easy to release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 200 | 541 | 1128 | 497 |
| 220 | 581 | 1191 | 517 |
| 260 | 661 | 1317 | 557 |
| 300 | 741 | 1442 | 597 |
| 340 | 821 | 1568 | 637 |
| 380 | 901 | 1694 | 677 |
| 420 | 981 | 1820 | 717 |
| 460 | 1061 | 1945 | 757 |
| 500 | 1141 | 2071 | 797 |
| 540 | 1221 | 2196 | 837 |
| 600 | 1341 | 2385 | 897 |
| 1000 | 2141 | 3640 | 1297 |
Installation height Hz: Hz = H + 10 mm/m
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 13 kg/m. For other inner widths, the maximum additional load changes.
For cable carriers with an aluminum cover system, a higher intrinsic cable carrier weight is to note.
Speed
up to 2.5 m/s
Acceleration
up to 5 m/s2
Travel length
up to 13.5 m
Additional load
up to 50 kg/m
GLIDING ARRANGEMENT
Speed
up to 1 m/s
Acceleration
up to 2 m/s2
Travel length
on request
Additional load
up to 50 kg/m
The gliding cable carrier must be guided in a channel.
Glide shoes have to be used for gliding applications.
