S/SX1800
S/SX1800
Pitch
180 mm
180 mm
Inner height
104 mm
104 mm
Chain widths
250 - 1000 mm
250 - 1000 mm
Bending radii
320 - 1300 mm
320 - 1300 mm
Stay Variants

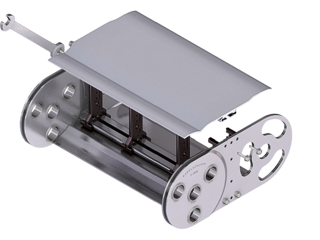

S/SX1800 Tubes RMD
more details
Stay Variants
S/SX1800 Tubes RMD
Aluminum cover system
- Bolted aluminum covers for maximum stability.
- For applications generating chips or coarse contamination.
- Inside/outside: Threaded joint easy to release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 320 | 850 | 1725 | 750 |
| 375 | 960 | 1898 | 805 |
| 435 | 1080 | 2087 | 865 |
| 490 | 1190 | 2259 | 920 |
| 605 | 1420 | 2620 | 1035 |
| 720 | 1650 | 2982 | 1150 |
| 890 | 1990 | 3516 | 1320 |
| 1175 | 2560 | 4411 | 1605 |
| 1300 | 2810 | 4804 | 1730 |
Installation height Hz: Hz = H + 10 mm/m
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 26 kg/m. For other inner widths, the maximum additional load changes.
For cable carriers with an aluminum cover system, a higher intrinsic cable carrier weight is to note.
Speed
up to 2 m/s
Acceleration
up to 3 m/s2
Travel length
up to 17.8 m
Additional load
up to 60 kg/m
GLIDING ARRANGEMENT
Speed
up to 0.8 m/s
Acceleration
up to 2 m/s2
Travel length
on request
Additional load
up to 60 kg/m
The gliding cable carrier must be guided in a channel.
Glide shoes have to be used for gliding applications.
