S/SX0950
S/SX0950
Pitch
95 mm
95 mm
Inner heights
42 - 50 mm
42 - 50 mm
Chain widths
125 - 600 mm
125 - 600 mm
Bending radii
125 - 600 mm
125 - 600 mm
Stay Variants
S/SX0950 RS1
more details
S/SX0950 RS2
more details
S/SX0950 RM
more details
S/SX0950 RR
more details
S/SX0950 LG
more details
Stay Variants

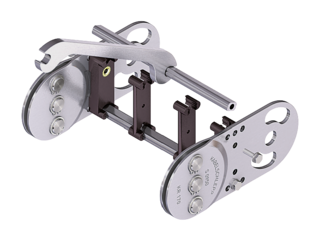

S/SX0950 RS1
Frame stay narrow “The standard”
- Aluminum profile bars for light to medium loads.
- Outside: release by turning by 90°.
- Inside: Threaded joints easy to release.

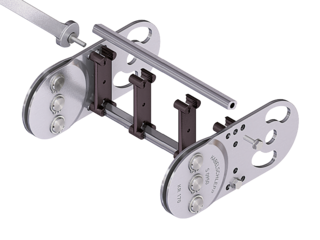

S/SX0950 RS2
Frame stay narrow, bolted
- Aluminum profile bars for light to medium loads. Simple threaded joint.
- Outside/inside: Threaded joints easy to release.

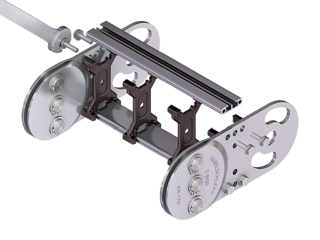

S/SX0950 RM
Frame stay, solid
- Aluminum profile bars for heavy loads and maximum cable carrier widths. Double threaded joint on both sides “Heavy Duty”.
- Inside/outside: Threaded joints easy to release.

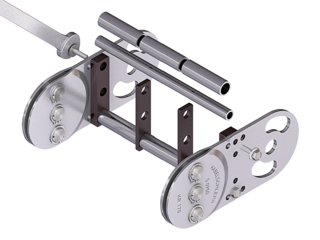

S/SX0950 RR
Frame stay, tube version
- Steel rolling stays with gentle cable support and steel dividers. Ideal for using media hoses with soft sheathing.
- Inside/outside: Screw connection detachable.

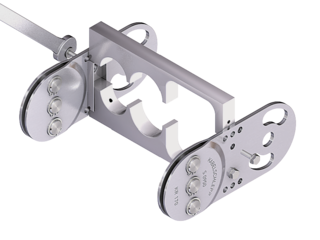

S/SX0950 LG
Frame stay, split
- Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
- Inside/outside: Threaded joint easy to release.
Additional stay variants on request

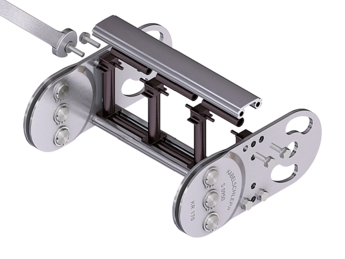

Aluminum stay RMR
Gentle cable guiding with rollers.

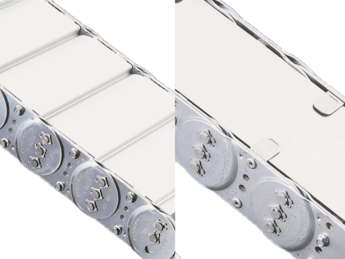

S/SX tubes
Also available as covered variants with cover system or steel band cover. More information can be found at “S/SX tubes”.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 125 | 352 | 773 | 350 |
| 140 | 382 | 820 | 365 |
| 170 | 442 | 914 | 395 |
| 200 | 502 | 1008 | 425 |
| 260 | 622 | 1197 | 485 |
| 290 | 682 | 1291 | 515 |
| 320 | 742 | 1385 | 545 |
| 350 | 802 | 1480 | 575 |
| 410 | 922 | 1668 | 635 |
| 600 | 1302 | 2264 | 825 |
Installation height Hz: Hz = H + 10 mm/m
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 7.6 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 2.5 m/s
Acceleration
up to 5 m/s2
Travel length
up to 8.8 m
Additional load
up to 45 kg/m
GLIDING ARRANGEMENT
Speed
up to 1 m/s
Acceleration
up to 2 m/s2
Travel length
on request
Additional load
up to 45 kg/m
The gliding cable carrier must be guided in a channel.
Glide shoes have to be used for gliding applications.
