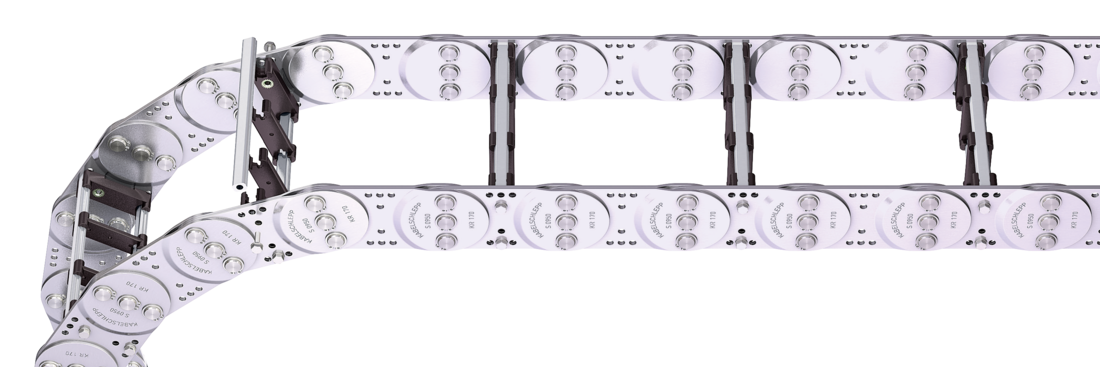

S/SX0950 RS1

S/SX0950 RS1

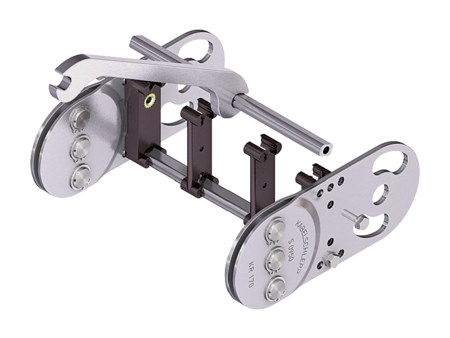

Aluminum stay RS 1 – frame stay narrow

Properties

  • Extremely quick to open and close
  • Aluminum profile bars for light to medium loads.
  • Available customized in 1 mm width sections.
  • Outside: release by rotating 90°.
  • Inside: Threaded joint easy to release
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bk 150 - 300 mm in 1 mm width sections

Dimensions Dimensions

<p>The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.</p>
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi"><strong>B<sub>i</sub></strong><br>[mm]</th> <th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">95</td> <td class="hi red">46</td> <td class="hg">68</td> <td class="hgdash">73</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi"> 107 - 257 </td> <td class="bst red"> 131 - 281 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">BSt + 19</td> <td class="bef">BSt + 28</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">7.55 - 7.95</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
125 140 170 200 260 290 320 350 410 600

Order example

S0950
Type
•
150
BSt [mm]
•
RS1
Stay variant
•
200
KR [mm]
•
St
Material
-
2375
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2nd chain link for stay mounting (HS). As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping onto a socket (available as an accessory). This socket additionally acts as a spacer between the dividers and is available in a 1 mm grid between 3 – 50 mm, as well as 16.5 and 21.5 mm (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A121410–

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A1214102

The dividers can be moved in the cross section.

Order example

TS1
Divider system
•
A
Version
•
3
nT
-
VD0
-
VD1
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT].

If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order. The end pieces are part of the divider system and don‘t have to be ordered separately.

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Connection surface
I – connection surface inside (standard)
A – connecting surface outside

Caution: The standard connection variant FAI/MAI is only possible from Bk of 122 mm.

Order example

Steel
Steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
