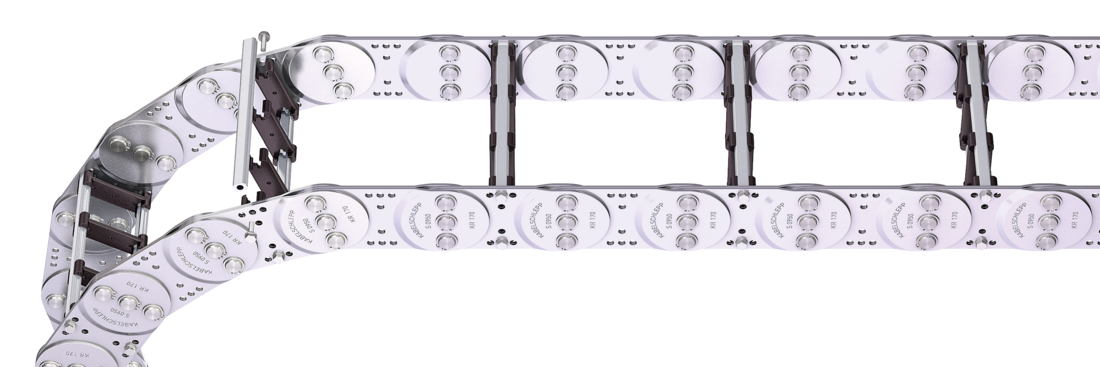

Aluminum stay RS 2 – frame stay narrow, threaded joint
Properties
- Quick to open and close

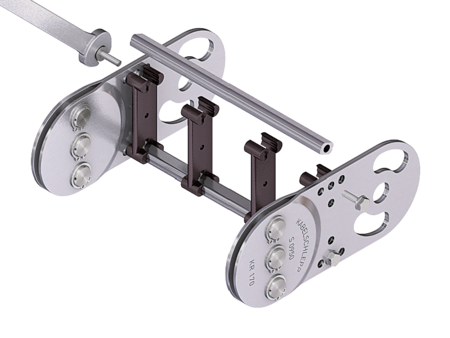

- Aluminum profile bars for light to medium loads. Simple threaded joint
- Available customized in 1 mm width sections.
- Outside/inside: Threaded joint easy to release.
Dimensions Dimensions
| KR [mm] | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 125 | 140 | 170 | 200 | 260 | 290 | 320 | 350 | 410 | 600 |
Order example
Inner Distribution Inner Distribution
Divider systems
The divider system is mounted on each crossbar as a standard – on every 2nd chain link for stay mounting (HS). As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).
For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping onto a socket (available as an accessory). This socket additionally acts as a spacer between the dividers and is available in a 1 mm grid between 3 – 50 mm, as well as 16.5 and 21.5 mm (version B).
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 12 | 14 | 10 | – |
The dividers can be moved in the cross section.
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 12 | 14 | 10 | 2 |
The dividers can be moved in the cross section.
Order example
Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT].
If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order. The end dividers are part of the divider system and don‘t have to be ordered separately.
End connectors End connectors
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside
Connection surface
I – connection surface inside (standard)
A – connecting surface outside
Order example
We recommend the use of strain reliefs at the driver and fixed point.
