S/SX7000

S/SX7000

Pitch
450 mm

Inner height
370 mm

Chain widths
350 - 1800 mm

Bending radii
900 - 2400 mm

Stay Variants

Stay Variants

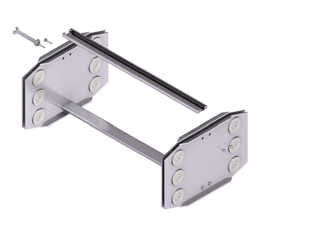

S/SX7000 Steel stay special design
Steel stay – steel frame stay, bolted

<ul><li>Steel profile bars for extremely high additional loads and very large cable carrier widths. Double threaded joint on both sides.</li><li>Available customized in <strong>1 mm grid</strong>.</li><li><strong>Inside/outside:</strong> Threaded joint can be released.</li></ul>

more details

Cable carriers of type 7000 are customized products for special applications, e.g. offshore use.

Installation dimensions

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR [mm]	H [mm]	L_B [mm]	U_B [mm]
min. 900	2250	3725	1575
max. 2400	5250	8435	3075

Installation height Hz: Hz = H + 10 mm/m

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Intrinsic cable carrier weight qk = 150 kg/m. For other inner widths, the maximum additional load changes.

Speed
up to 0.5 m/s

Acceleration
up to 0.3 m/s²

Travel length
up to 24.9 m

Additional load
up to 600 kg/m
