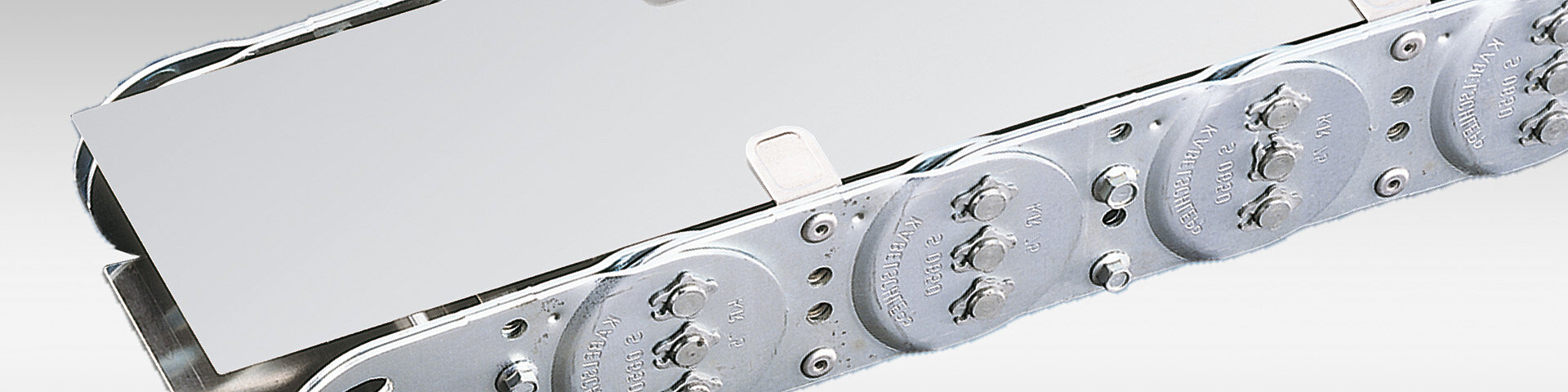

Steel band covers
Continuous, cost-effective protection against chips and other external influences
To protect the cables against flying sparks, radiated heat and small chips, steel band covers made from corrosionresistant and acid-resistant spring band steel are available.
- Cost-effective cover variant for half-stayed version
- Maximum steel band width: 1000 mm
Guiding of the steel band:
with steel band holders on the inside of the side band
Fastening of the steel band:
Inside: with steel band holders on the end connectors
Outside: with the fastening screws of the end connectors
Dimensions table
| Type | Steel band length [mm] | Steel band width [mm] | |
|---|---|---|---|
| Outer steel band | Inner steel band | ||
| S/SX 0650 | Lk + 280 | Lk + 130 | Bk – 22 |
| S/SX 0950 | Lk + 360 | Lk + 150 | Bk – 27 |
| S/SX 1250 | Lk + 470 | Lk + 170 | Bk – 34 |
| S/SX 1800 | Lk + 640 | Lk + 200 | Bk – 40 |
| S/SX 2500 | Lk + 945 | Lk + 255 | Bk – 46 |
Steel band covers for the other types on request!

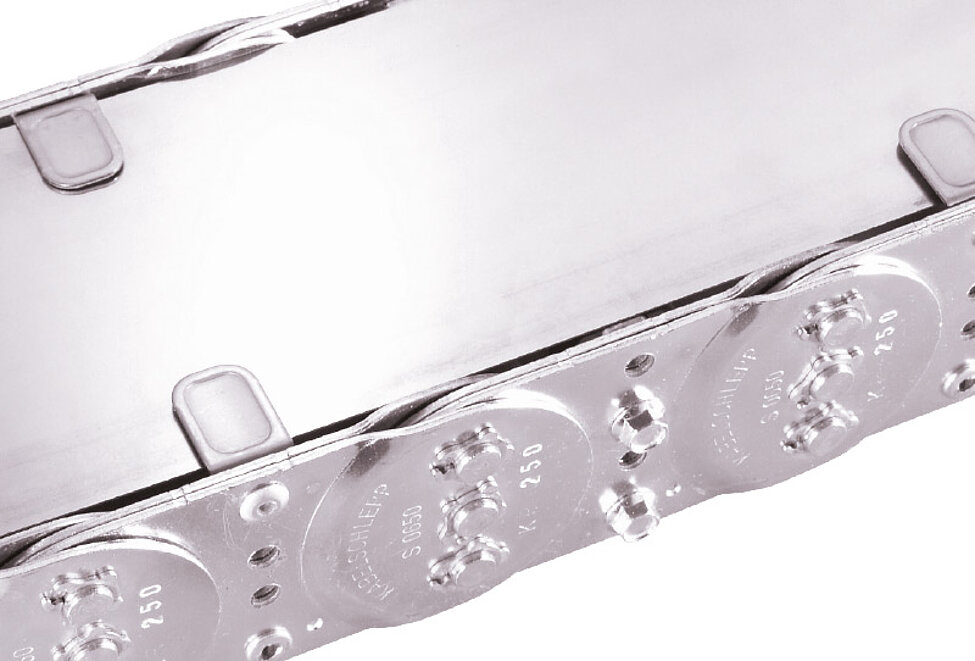

Steel band holder on the sidebands.

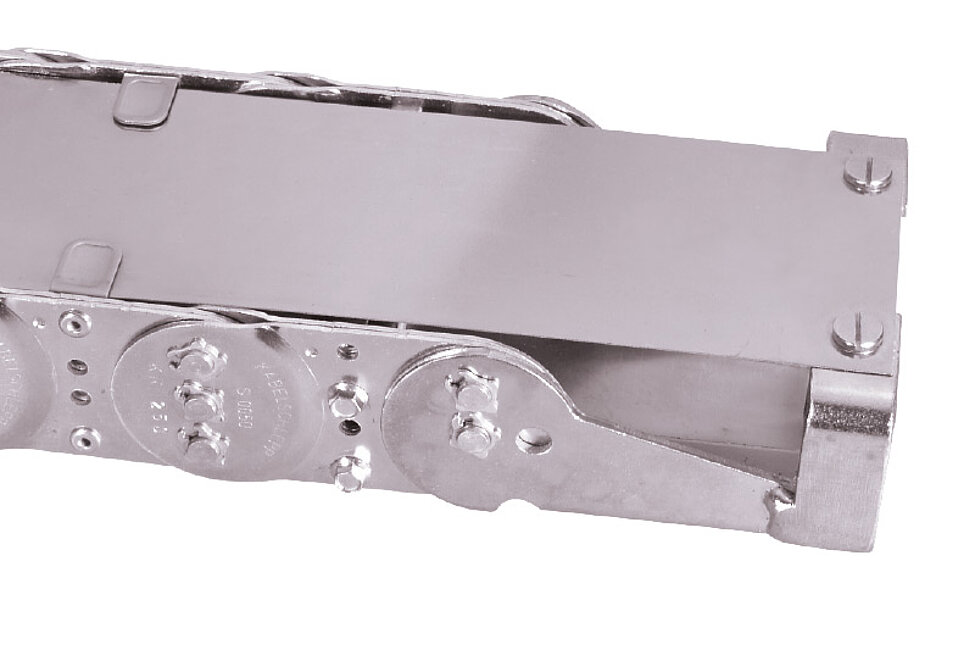

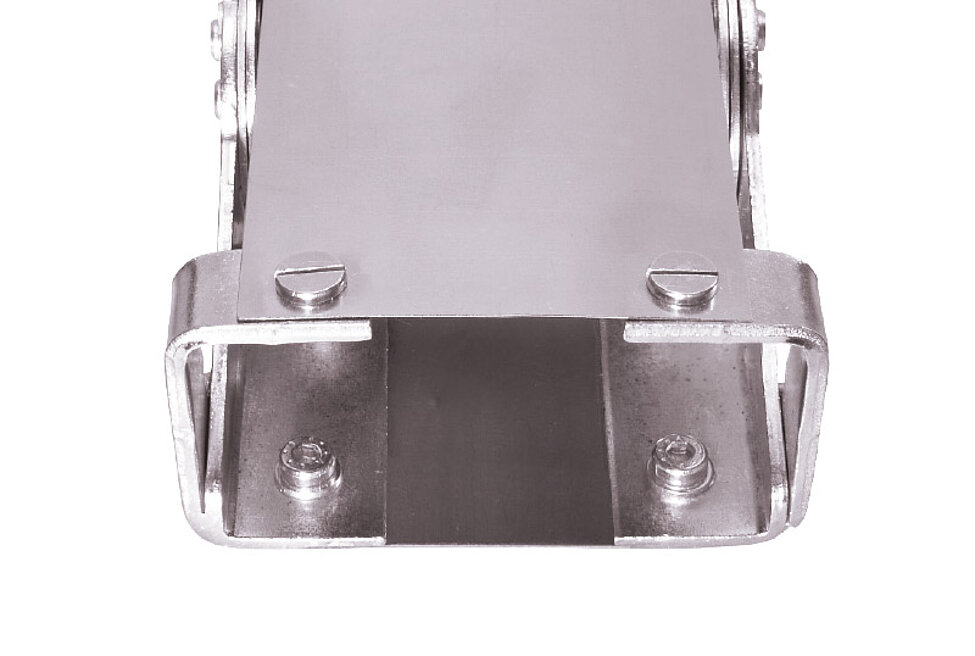

Fastening on the cable carrier connection with special end connector.
