S/SX2500
S/SX2500
Pitch
250 mm
250 mm
Inner heights
180 - 183 mm
180 - 183 mm
Chain widths
250 - 1200 mm
250 - 1200 mm
Bending radii
365 - 1395 mm
365 - 1395 mm
Stay Variants
S/SX2500 RM
more details
S/SX2500 LG
more details
Stay Variants

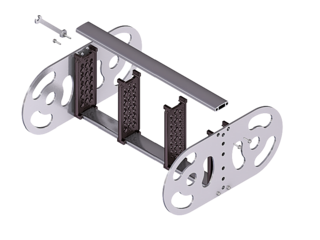

S/SX2500 RM
Frame stay, solid
- Aluminum profile bars for heavy loads and maximum cable carrier widths. Double threaded joint on both sides “Heavy Duty”.
- Inside/outside: Threaded joint easy to release.

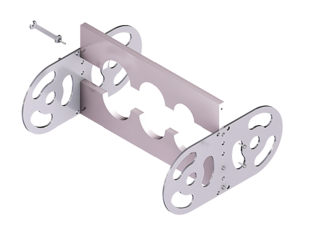

S/SX2500 LG
Frame stay, split
- Optimum cable routing in the neutral bending line. Split version for easy cable routing.
- Inside/outside: Threaded joint easy to release.
Steel band cover
Also available as covered variants with steel band cover.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 365 | 1060 | 2147 | 975 |
| 445 | 1220 | 2398 | 1055 |
| 600 | 1530 | 2885 | 1210 |
| 760 | 1850 | 3388 | 1370 |
| 920 | 2170 | 3890 | 1530 |
| 1075 | 2480 | 4377 | 1685 |
| 1235 | 2800 | 4880 | 1845 |
| 1395 | 3120 | 5383 | 2005 |
Installation height Hz: Hz = H + 10 mm/m
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 41 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 1 m/s
Acceleration
up to 3 m/s2
Travel length
up to 23.7 m
Additional load
up to 100 kg/m
