ET0115
ET0115
Pitch
11.5 mm
11.5 mm
Inner height
4.6 mm
4.6 mm
Inner width
7 mm
7 mm
Bending radius
10 mm
10 mm
Stay Variants
ET0115.040
more details
Stay Variants
ET0115.040

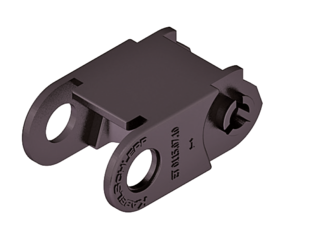

Frame with lamellae in the inner radius
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Swivelling at any position on one side.
- Inside: swivelling.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 10 | 28 | 38 | 54.5 | 25.5 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 0.044 kg/m with Bi 7 mm. For other inner widths, the maximum additional load changes.
Speed
up to 3 m/s
Acceleration
up to 10 m/s2
Travel length
up to 0.68 m
Additional load
up to 0.4 kg/m
