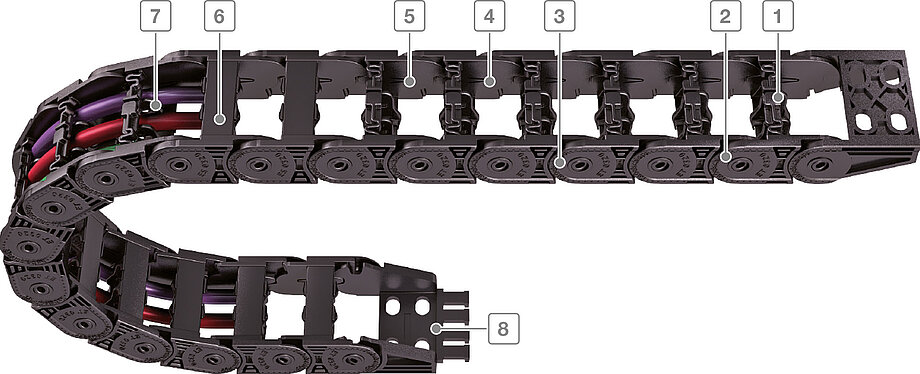

EasyTrax® series

Extremely fast cable laying thanks to easy cable insertion

Sturdy 2-component design: solid chain body, flexible film hinge
Plastic chain links
Extensive unsupported length
Inside space is gentle on the cables – no interfering edges
Very quiet through integrated noise damping
Inside or outside openable
Dividers for cable separation
Single-part end connectors with integratable strain relief

Features

Very fast cable laying by simply pressing in the cables
Very high fill level through lateral swivelling of the lamella – lamellae do not swivel into the cable space
Each chain link consists of two different materials:
– Hard chain body made of glass-fibre reinforced material
– Lamellae with flexible film hinge made of special elastic plastic
Sturdy cable carrier design
High torsional rigidity
Extensive unsupported length
Very quiet through integrated noise damping

Long travel length

Opens outward

Opens inward

Sliding dividers

Quiet running/low noise

ESD material

Ex-protection-material

Heat-resistant

Cold-resistant

Clean room suitable

Fast and easy installation of cables

Very high fill level

High side stability

Divider systems for reliable cable separation

Types

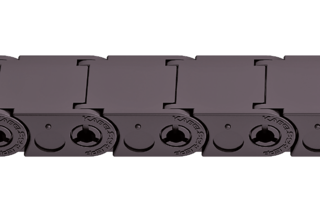

ET0115

Inner height [hi]: 4.6 mm
Inner widths [Bi]: 7 mm
Pitch [t]: 11.5 mm
Bending [KR]: 10 mm

more details

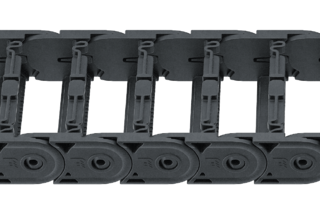

ET0250

Inner height [hi]: 16.5 mm
Inner widths [Bi]: 30 - 50 mm
Pitch [t]: 25 mm
Bending [KR]: 28 - 100 mm

more details

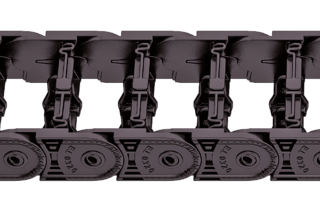

ET0320

Inner height [hi]: 18 mm
Inner widths [Bi]: 15 - 65 mm
Pitch [t]: 32 mm
Bending [KR]: 28 - 125 mm

more details

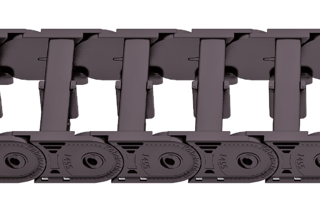

ET1455

Inner height [hi]: 25 mm
Inner widths [Bi]: 25 - 78 mm
Pitch [t]: 45.5 mm
Bending [KR]: 52 - 200 mm

more details

Type	hi [mm]	Bi [mm]	t [mm]	KR [mm]
ET0115	4.6	7	11.5	10
ET0250	16.5	30 - 50	25	28 - 100
ET0320	18	15 - 65	32	28 - 125
ET1455	25	25 - 78	45.5	52 - 200

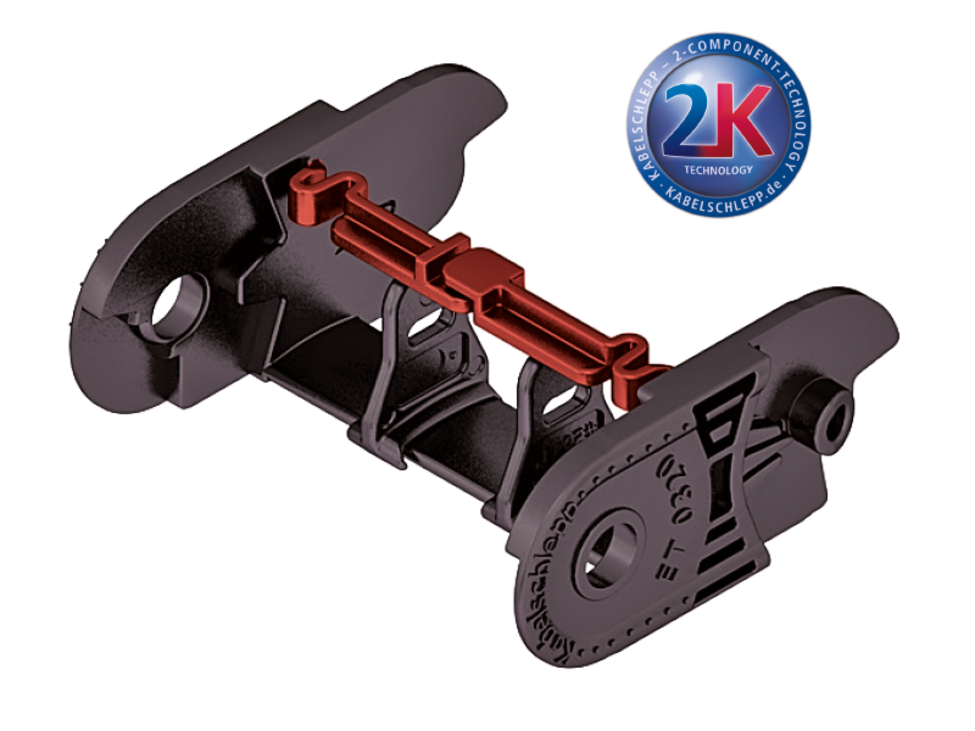

Cable carrier design

Solid plastic cable carriers: chain links and end connectors made of plastic

Each chain link consists of two different materials:

Hard cable carrier body made of glass fiber-reinforced material
Flexible lamellae made of elastic plastic

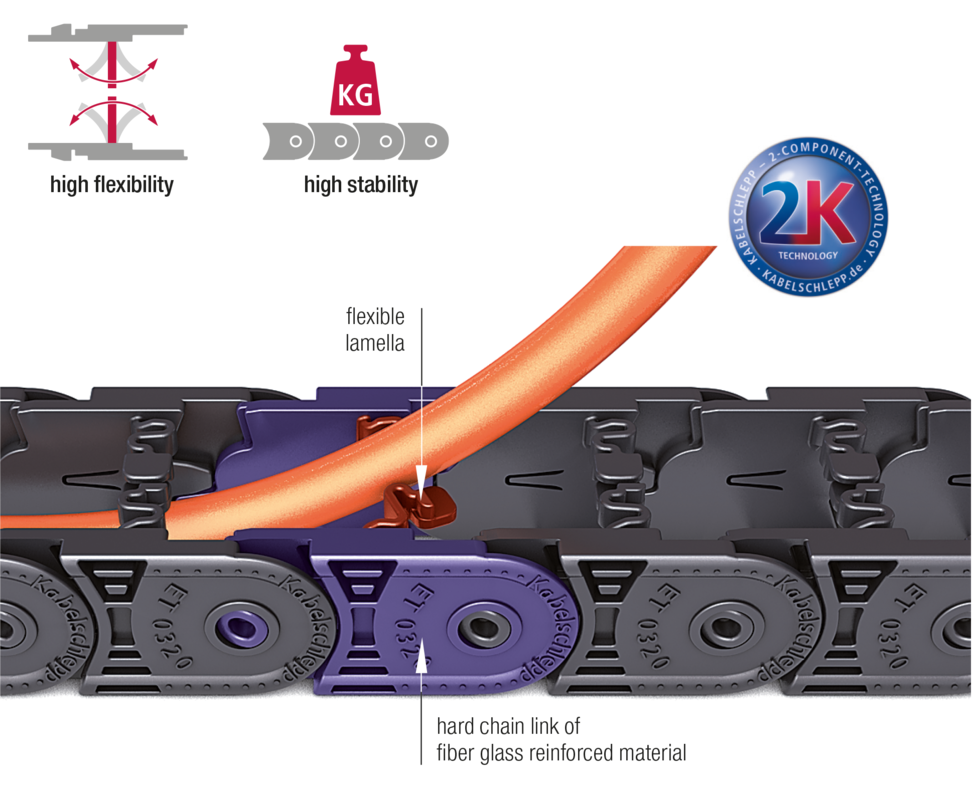

THE TWO-COMPONENT TECHNOLOGY

The two-component technology of the EasyTrax^® combines two seemingly incompatible features: stability and flexibility. Cable carriers need to be extremely sturdy, with extensive unsupported length. At the same time, cables need to be inserted easily for fast cable laying. The EasyTrax^® meets these requirements thanks to its innovative design and material combination of a hard cable carrier body made from fiber glass reinforced material and lamellae made of elastic plastic.
