ET1455
ET1455
Pitch
45.5 mm
45.5 mm
Inner height
25 mm
25 mm
Inner widths
25 - 78 mm
25 - 78 mm
Bending radii
52 - 200 mm
52 - 200 mm
Stay Variants
ET1455.030
more details
ET1455.040
more details
Stay Variants

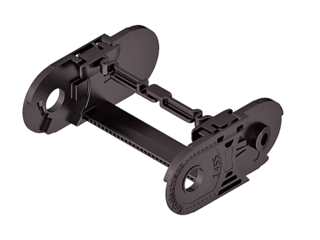

ET1455.030
Stay variant 030 – with lamellae in the outer radius
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Lamellae can be swivelled at any position on one side.
- Outside: swivelling.

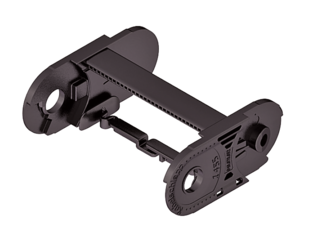

ET1455.040
Stay variant 040 – with lamellae in the inner radius
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Lamellae can be swivelled at any position on one side.
- Inside: swivelling.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 52 | 140 | 165 | 255 | 116 |
| 65 | 166 | 191 | 296 | 129 |
| 95 | 226 | 251 | 390 | 159 |
| 125 | 286 | 211 | 484 | 189 |
| 150 | 336 | 361 | 563 | 214 |
| 180 | 396 | 421 | 657 | 244 |
| 200 | 436 | 461 | 720 | 264 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 0.75 kg/m with Bi 38 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 4.8 m
Additional load
up to 6.0 kg/m
