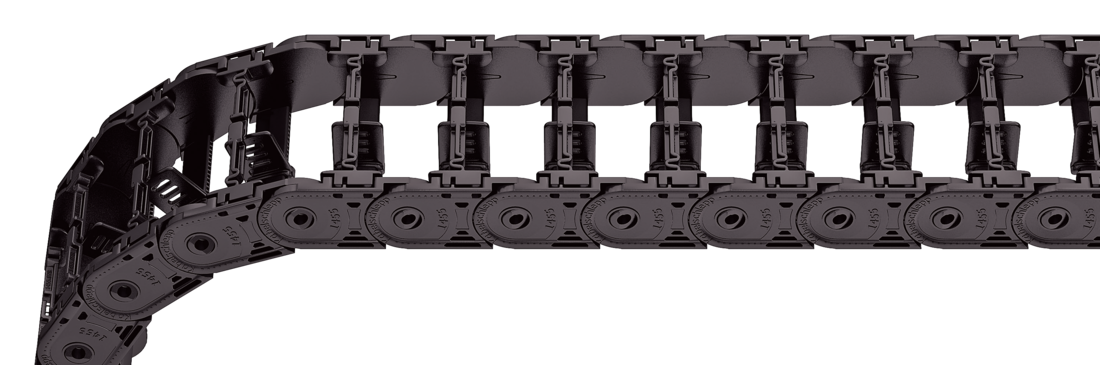

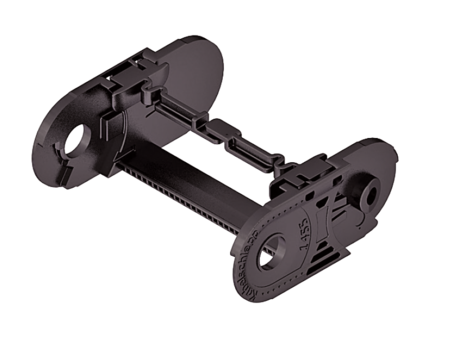

Stay variant 030 – with lamellae in the outer radius
Properties
Weight-optimised plastic frame with particularly high torsional rigidity.
Lamellae can be swivelled at any position on one side
Outside: swivelling.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi
25 - 78
mm
Dimensions
Dimensions
The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table">
<thead>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<th class="t"><strong>t</strong><br>[mm]</th>
<th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th>
<th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th>
<th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<!-- Bk und BEF für alle Ketten -->
<th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th>
</tr>
</thead>
<tbody>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<td class="t">45.5</td>
<td class="hi red">25</td>
<td class="hg">36</td>
<td class="hgdash">38.5</td>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<!-- Bk und BEF für alle Ketten -->
<td class="bk">Bi + 16</td>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="qk">0.65 – 0.80</td>
</tr>
</tbody>
</table>
Bi [mm]
25
38
58
78
KR [mm]
52
65
95
125
150
180
200
Order example
ET1455
Type
•
030
Stay variant
•
78
Bi [mm]
•
150
KR [mm]
-
1456
Lk [mm]
VS
Stay arrangement
End connectors
End connectors
Recommended tightening torque: 6 Nm for screws M6 - 8.8
Bi [mm]
nz
25
2 x 2
38
2 x 3
58
2 x 4
78
2 x 6
The end connectors are optionally also available without strain relief comb. Please state when ordering.
Connection point F – fixed point M– driver
Connection type A – threaded joint outside (standard) I – threaded joint inside H – threaded joint, rotated 90° to the outside K – threaded joint, rotated 90° to the inside
