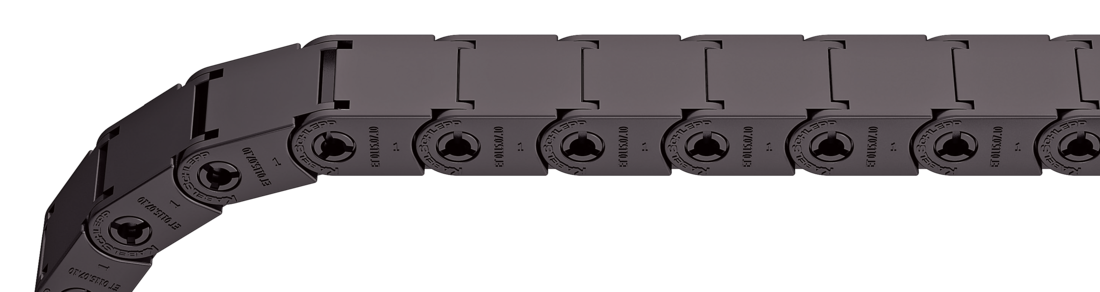

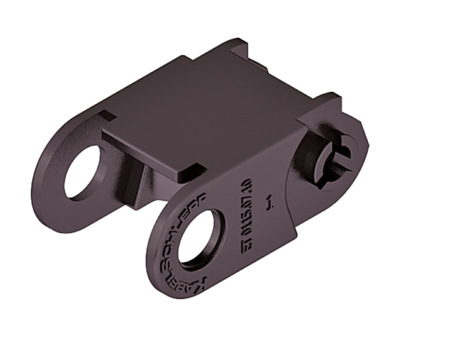

Stay variant 040 – with lamella in the inner radius
Properties
Weight-optimised plastic frame with particularly high torsional rigidity.
Can be swivelled at any position on one side.
Inside: swivelling.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi
7
mm
Dimensions
Dimensions
The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table">
<thead>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<th class="t"><strong>t</strong><br>[mm]</th>
<th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th>
<th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]</th>
<!-- Bk und BEF für alle Ketten -->
<th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="kr"><strong>KR</strong><br>[mm]</th>
<th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th>
</tr>
</thead>
<tbody>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<td class="t">11.5</td>
<td class="hi red">4.6</td>
<td class="hg">8</td>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="bi red">
7
</td>
<!-- Bk und BEF für alle Ketten -->
<td class="bk">Bi + 4</td>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="kr">
10
</td>
<td class="qk">0.044</td>
</tr>
</tbody>
</table>
Order example
ET0115
Type
•
040
Stay variant
•
7
Bi [mm]
•
10
KR [mm]
-
1280
Lk [mm]
VS
Stay arrangement
End connectors
End connectors
The end connectors can be swivelled in the KR direction.
Connection point F – fixed point M– driver
Connection type A – threaded joint outside (standard)
