QT0250
QT0250
Pitch
25 mm
25 mm
Inner height
17.6 mm
17.6 mm
Inner widths
30 - 50 mm
30 - 50 mm
Bending radii
28 - 100 mm
28 - 100 mm
Stay Variants
QT0250.030
more details
QT0250.040
more details
Stay Variants

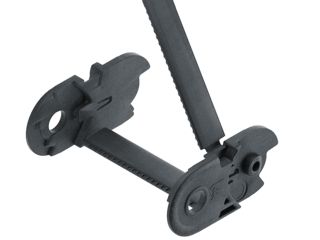

QT0250.030
Frame with outside opening crossbars
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Crossbar can be opened at any position on one side.
- Outside: openable.

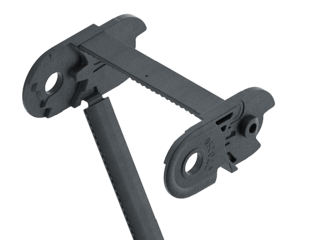

QT0250.040
Frame with inside opening crossbars
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Crossbar can be opened at any position on one side.
- Inside: openable.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 28 | 79 | 104 | 138 | 65 |
| 38 | 99 | 124 | 169 | 75 |
| 45 | 113 | 138 | 191 | 82 |
| 60 | 143 | 168 | 238 | 97 |
| 75 | 173 | 198 | 286 | 112 |
| 100 | 223 | 248 | 364 | 137 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 0.36 kg/m with Bi 50 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 1.6 m
Additional load
up to 4 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 30 m/s2
Travel length
up to 60 m
Additional load
up to 4 kg/m
The gliding cable carrier must be guided in a channel.
Only design 030 can be used for a gliding arrangement.
