QuickTrax® series
Compact and cost-effective cable carriers in two-component technology

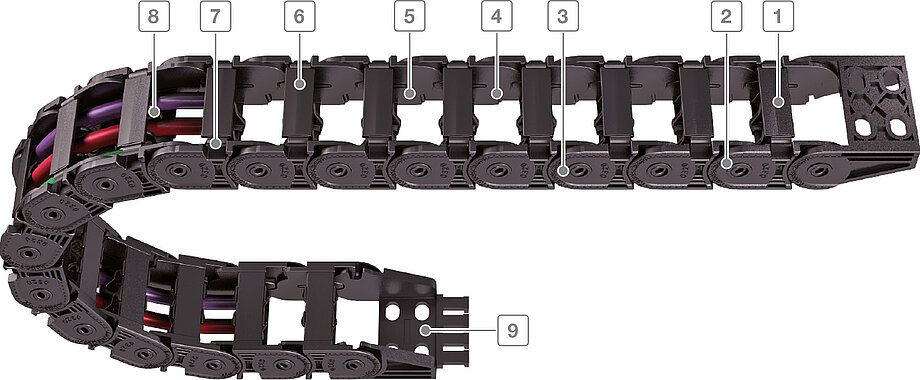

- Sturdy 2-component design: hard chain body, flexible film hinge
- Plastic chain links
- Extensive unsupported length
- Inside space is gentle on the cables – no interfering edges
- Very quiet through integrated noise damping
- Quick and easy to open
- Inside/outside openable
- Dividers and height separations for cable Separation
- Single-part end connectors with and without integratable strain relief
Features
- Extremely fast and easy cable laying thanks to crossbar with film hinge
- Each chain link consists of two different materials:
– Hard chain body made of glass-fibre reinforced material
– Crossbar with flexible film hinge made of elastic special plastic - Sturdy cable carrier design
- High torsional rigidity
- Very quiet through integrated noise damping
- Extensive unsupported length

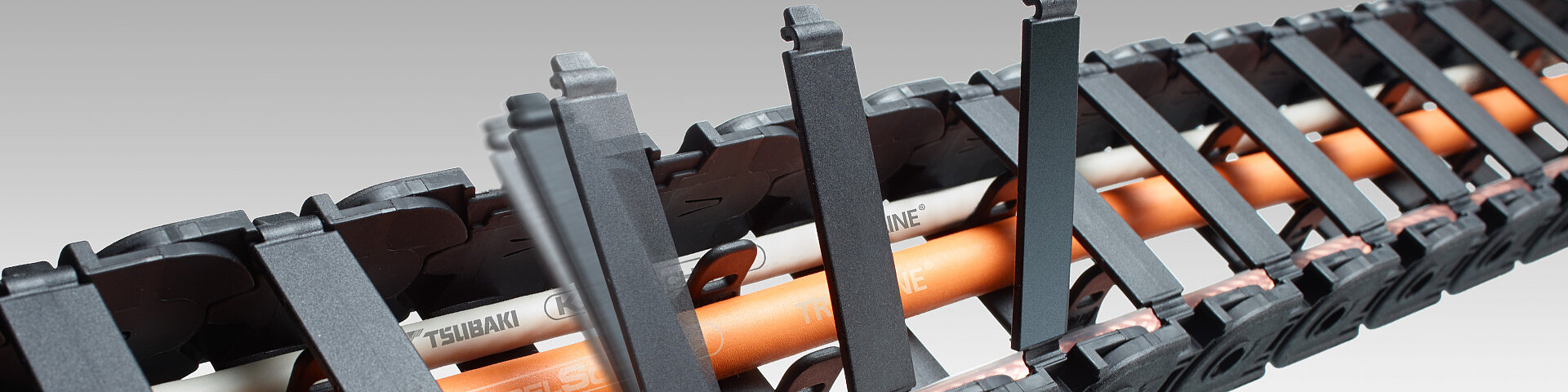

Easy to open...
...even without tools
High side stability
Reliable cable separation

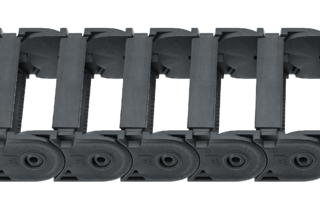

QT0250
- Inner height [hi]: 17.6 mm
- Inner widths [Bi]: 30 - 50 mm
- Pitch [t]: 25 mm
- Bending [KR]: 28 - 100 mm

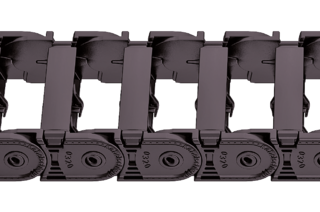

QT0320
- Inner height [hi]: 20 mm
- Inner widths [Bi]: 15 - 65 mm
- Pitch [t]: 32 mm
- Bending [KR]: 28 - 125 mm

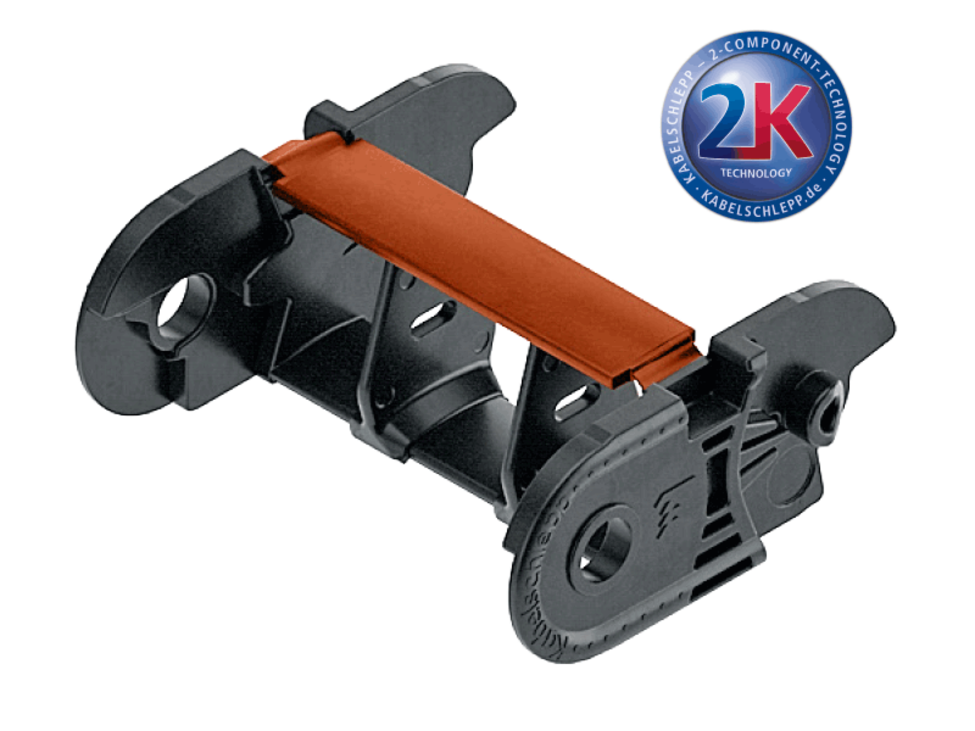

Cable carrier design
Solid plastic cable carriers: chain links and end connectors made of plastic
Each chain link consists of two different materials:
- Hard cable carrier body made of glass fiber-reinforced material
- Flexible lamellae made of elastic plastic
THE TWO-COMPONENT TECHNOLOGY OF THE QUICKTRAX®
The two-component technology of the QuickTrax® combines two seemingly incompatible features: Stability and flexibility. Cable carriers need to be extremely sturdy, with extensive unsupported length. At the same time, cables need to be inserted easily for fast cable laying. The QuickTrax® meets these requirements thanks to its innovative design and material combination of a hard cable carrier body made from glass fiber-reinforced material and crossbars with a film hinge made from rigid special plastic.
Comparison of dimensions
| Manufacturer | hi [mm] | hG [mm] | t [mm] | Identical connection hole pattern |
|---|---|---|---|---|
QuickTrax | 20.0 | 25.5 | 32.0 | yes |
Competitive product | 17.5 | 23.0 | 30.5 | yes |
COMPARISON OF BENDING MOMENT
COMPARISON OF BENDING STRENGTH
Load diagram for unsupported length depending on additional load
Advantages over competitive product
- 20 % longer unsupported length compared to competitive product
- 33 % greater additional load through use of fiber glass reinforced plastic
- Greater inner height
- Low noise operation due to internal damping system
- High side stability through locking in the stroke system
- Dividers can be used for cable separation
