QT0320
QT0320
Pitch
32 mm
32 mm
Inner height
20 mm
20 mm
Inner widths
15 - 65 mm
15 - 65 mm
Bending radii
28 - 125 mm
28 - 125 mm
Stay Variants
QT0320.030
more details
QT0320.040
more details
Stay Variants

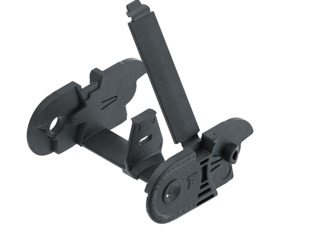

QT0320.030
Frame with outside opening crossbars
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Crossbar can be opened at any position on one side.
- Outside: openable.

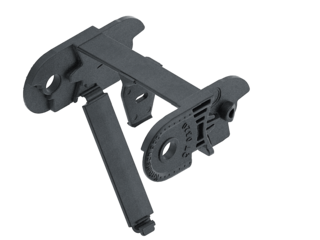

QT0320.040
Frame with inside opening crossbars
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Crossbar can be opened at any position on one side.
- Inside: openable.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 28 | 81.5 | 101.5 | 152 | 73 |
| 38 | 101.5 | 121.5 | 184 | 83 |
| 48 | 121.5 | 141.5 | 215 | 93 |
| 75 | 175.5 | 195.5 | 300 | 120 |
| 100 | 225.5 | 245.5 | 379 | 145 |
| 125 | 275.5 | 295.5 | 457 | 170 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 0.40 kg/m with Bi 38 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 2.9 m
Additional load
up to 3 kg/m
GLIDING ARRANGEMENT
Speed
up to 2.5 m/s
Acceleration
up to 25 m/s2
Travel length
up to 80 m
Additional load
up to 3 kg/m
The gliding cable carrier must be guided in a channel.
Only design 030 can be used for a gliding arrangement.
