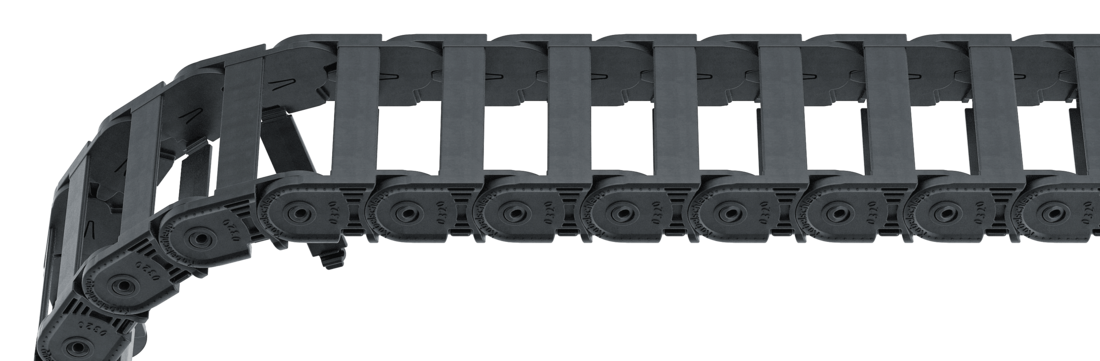

QT0320.040

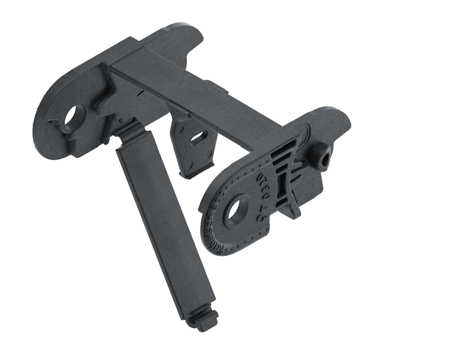

Stay variant 040 – with inside opening crossbars
Properties
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Crossbars can be opened at any position on one side
- Inside: openable.
Dimensions Dimensions
| Bi [mm] | ||||
|---|---|---|---|---|
| 15 | 25 | 38 | 50 | 65 |
| KR [mm] | |||||
|---|---|---|---|---|---|
| 28 | 38 | 48 | 75 | 100 | 125 |
Order example
Inner Distribution Inner Distribution
Divider systems
The divider system is mounted on each crossbar as a standard – on every 2nd chain link for stay mounting (HS – halfstayed).
As a standard, dividers or the complete divider System (dividers with height separations) are movable in the cross section (version A).
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 4 | 8 | 6 | – |
The dividers can be moved in the cross section.
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 4 | 8 | 6 | 2 |
The dividers can be moved in the cross section.
Order example
Please state the designation of the divider system (TS0, TS1,...), the version, and the number of dividers per cross section [nT].
When using divider systems with height separation (TS1), please additionally state the position (e.g. VD1) viewed from the left driver belt. You are welcome to add a sketch to your order.
End connectors End connectors
| Bi [mm] | BEF [mm] | nz |
|---|---|---|
| 15 | 27 | 2 |
| 25 | 37 | 3 |
| 38 | 50 | 4 |
| 50 | 62 | 5 |
| 65 | 77 | 6 |
The end connectors are also available as an option without integrated strain relief. Please state when ordering.
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside
