UA1455
45.5 mm
26 mm
25 - 130 mm
52 - 200 mm
Stay Variants

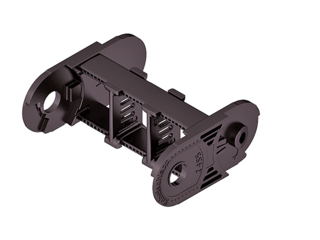

UA1455.020
Closed frame
- Weight-optimised, closed plastic frame with particularly high torsional rigidity.
- Outside/inside: not openable.

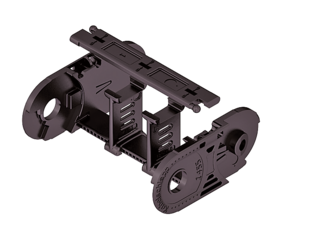

UA1455.030
Frame with outside detachable stays
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Outside: openable and detachable.

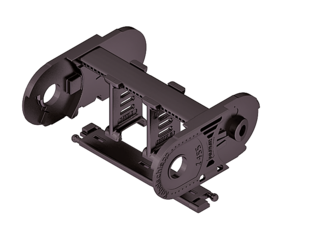

UA1455.040
Frame with inside detachable stays
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Inside: openable and detachable.

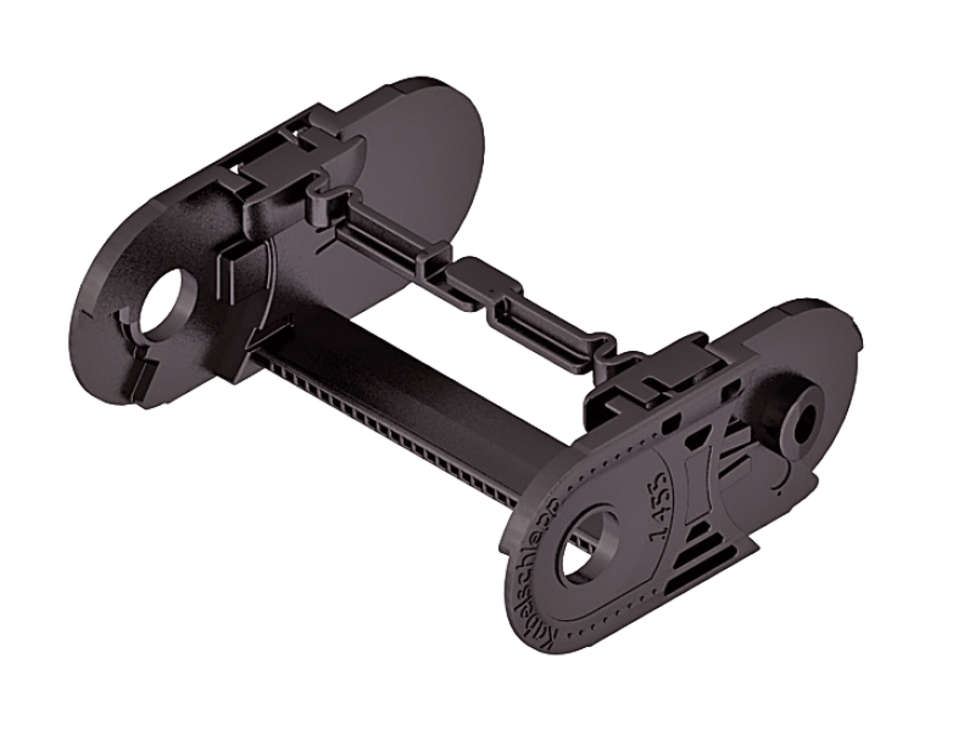

EasyTrax®
For an openable cable carrier with 25 mm inner height we recommend the series EasyTrax® 1455
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 52 | 140 | 165 | 255 | 116 |
| 65 | 166 | 191 | 296 | 129 |
| 95 | 226 | 251 | 390 | 159 |
| 125 | 286 | 311 | 484 | 189 |
| 150 | 336 | 361 | 563 | 214 |
| 180 | 396 | 421 | 657 | 244 |
| 200 | 436 | 461 | 720 | 264 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.75 kg/m with Bi 38 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 4.8 m
Additional load
up to 6 kg/m
GLIDING ARRANGEMENT
GO module with chain links optimized for gliding
| KR [mm] | H [mm] | GO module RKR [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 52 | 108 | 225 | 780 | 377 |
| 65 | 108 | 225 | 825 | 389 |
| 95 | 108 | 225 | 1007 | 450 |
| 125 | 108 | 225 | 1189 | 508 |
| 150 | 108 | 225 | 1371 | 573 |
| 180 | 108 | 225 | 1599 | 655 |
| 200 | 108 | 225 | 1781 | 723 |
Speed
up to 2.5 m/s
Acceleration
up to 20 m/s2
Travel length
up to 120 m
Additional load
up to 6 kg/m
The gliding cable carrier must be guided in a channel.
The GO module mounted on the driver is a defined sequence of 5 adapted KR/RKR link plates.
Glide shoes must be used for gliding applications.
Only designs 020 and 030 can be used for a gliding arrangement.
