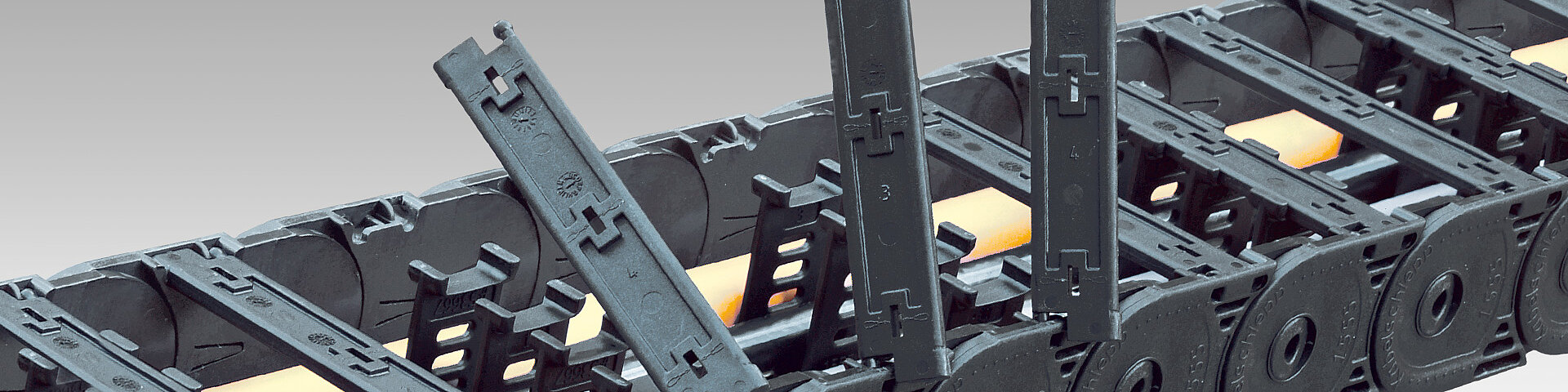

Light, quiet all-rounder with a wide range of applications*
* Some features can be different for certain types for design reasons.

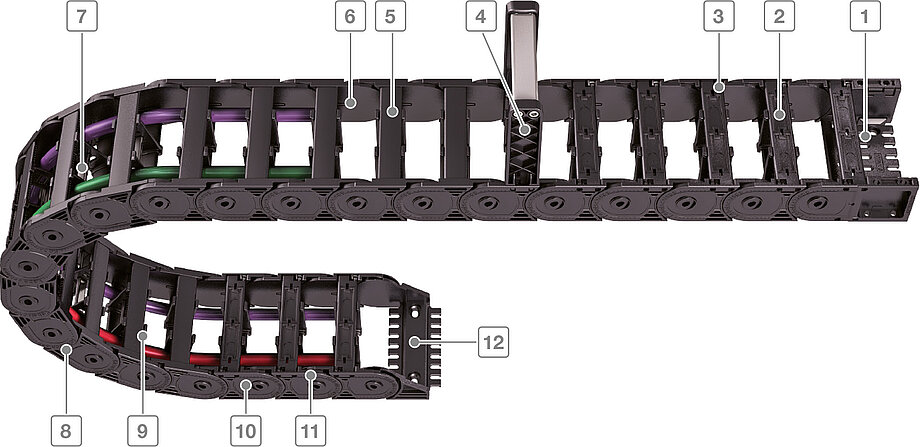

- Universal mounting bracket (UMB) with integratable strain relief comb
- Designs with inside or outside opening stays
- Extremely fast and easy to open due to ball joint mechanism
- Top-mounted frame stay
- Single-part links (type 020)
- Favourable ratio of inner to outer width
- Many separation options for the cables
- Robust double-stroke system for long unsupported lengths
- Easy divider fixing
- Very quiet through integrated noise damping
- Lateral wear surfaces
- Single-part end connectors with integratable strain relief comb
Features
Features
- Extensive unsupported lengths
- High torsional rigidity
- Good ratio of inner to outer width
- Numerous custom material types for custom applications available
- Easy assembly and fast cable laying
- Assembly tools available
- Stays with ball joint opening on both sides
- Many possibilities for internal subdivision
- Wear surfaces for gliding applications with extended travel lengths
Long travel length
Cannot be opened
Opens outward
Opens inward
Sliding dividers
Fixable dividers
Height separation possible
Quiet running/low noise
ESD material
Ex-protection-material
Heat-resistant
Cold-resistant
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)
Clean room suitable
fig. 1
fig. 2
fig. 1 + fig. 2
Fixable dividers for arrangements rotated by 90° and applications with high lateral accelerations – no additional spacers required
Lateral wear surfaces – for long service life for applications where the carrier is rotated through 90°
Simple fixing of strain relief comb or C-Rail in the connector
Types
more details
more details
more details
more details
more details
more details
more details

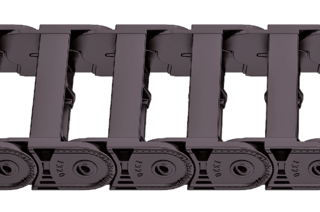

UA1250
- Inner height [hi]: 17.5 mm
- Inner widths [Bi]: 30 - 50 mm
- Pitch [t]: 25 mm
- Bending [KR]: 28 - 100 mm

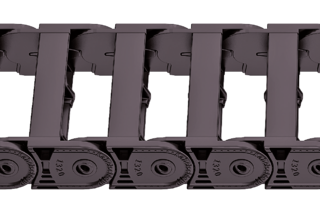

UA1320
- Inner height [hi]: 20 mm
- Inner widths [Bi]: 15 - 65 mm
- Pitch [t]: 32 mm
- Bending [KR]: 28 - 125 mm

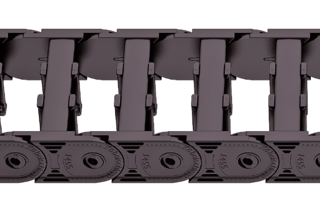

UA1455
- Inner height [hi]: 26 mm
- Inner widths [Bi]: 25 - 130 mm
- Pitch [t]: 45.5 mm
- Bending [KR]: 52 - 200 mm

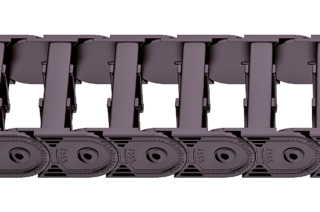

UA1555
- Inner height [hi]: 38 mm
- Inner widths [Bi]: 50 - 150 mm
- Pitch [t]: 55.5 mm
- Bending [KR]: 63 - 200 mm

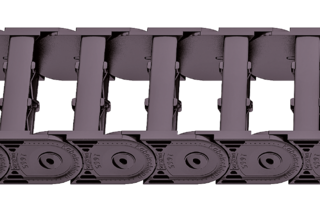

UA1665
- Inner height [hi]: 44 mm
- Inner widths [Bi]: 50 - 250 mm
- Pitch [t]: 66.5 mm
- Bending [KR]: 75 - 300 mm

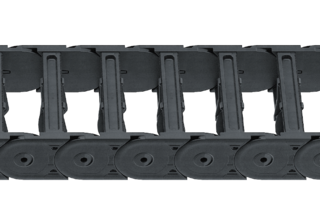

UA1775
- Inner height [hi]: 56 mm
- Inner widths [Bi]: 100 - 400 mm
- Pitch [t]: 77.5 mm
- Bending [KR]: 90 - 340 mm

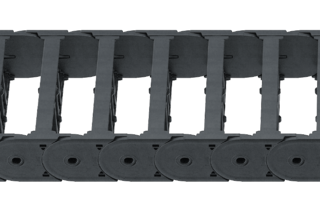

UA1995
- Inner height [hi]: 80 mm
- Inner widths [Bi]: 66 - 600 mm
- Pitch [t]: 99.5 mm
- Bending [KR]: 150 - 500 mm
