UA1320
UA1320
Pitch
32 mm
32 mm
Inner height
20 mm
20 mm
Inner widths
15 - 65 mm
15 - 65 mm
Bending radii
28 - 125 mm
28 - 125 mm
Stay Variants
UA1320.020
more details

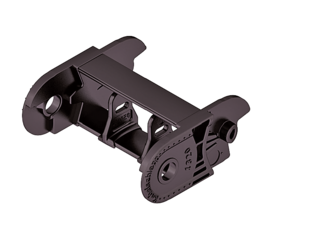

Stay Variants
UA1320.020
Closed frame
- Weight-optimised, closed plastic frame with particularly high torsional rigidity.
- Outside/inside: not openable.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 28 | 81.5 | 98.5 | 152 | 73 |
| 38 | 101.5 | 118.5 | 184 | 83 |
| 48 | 121.5 | 138.5 | 215 | 93 |
| 75 | 175.5 | 192.5 | 300 | 120 |
| 100 | 225.5 | 242.5 | 379 | 145 |
| 125 | 275.5 | 292.5 | 457 | 170 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.40 kg/m with Bi 50 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 2.9 m
Additional load
up to 3 kg/m
GLIDING ARRANGEMENT
Speed
up to 2.5 m/s
Acceleration
up to 25 m/s2
Travel length
up to 80 m
Additional load
up to 3 kg/m
The gliding cable carrier must be guided in a channel.
