UA1995

UA1995

Pitch
99.5 mm
Inner height
80 mm
Inner widths
66 - 600 mm
Bending radii
150 - 500 mm
Stay Variants

Stay Variants

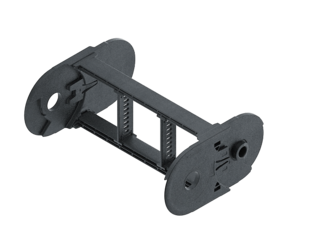

UA1995.020
Closed frame
  • Weight-optimised, closed plastic frame with particularly high torsional rigidity.
  • Outside/inside: not openable.
more details

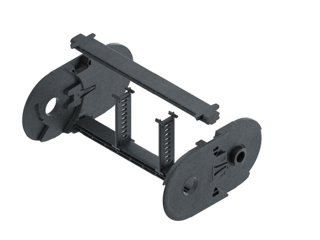

UA1995.030
Frame with outside detachable stays
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Outside: release by rotating 90°.
more details

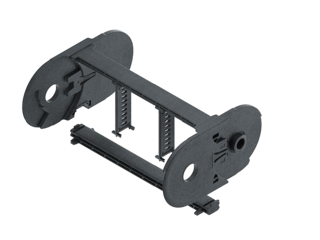

UA1995.040
Frame with inside detachable stays
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Inside: release by rotating 90°.
more details

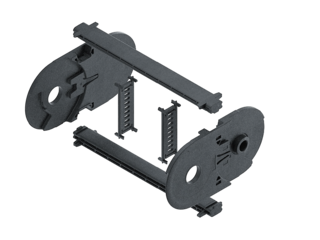

UA1995.070
Frame with outside and inside detachable stays
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Outside/inside: release by rotating 90°.
more details

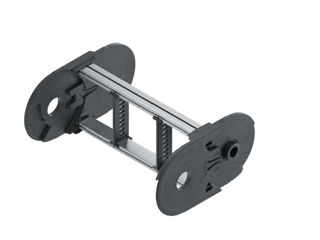

UA1995 RSH 020
Stay variant RSH 020 – closed frame
<ul><li>Aluminum profile bars for light to medium loads. Assembly without screws.</li><li>Available customized in <strong>1 mm grid</strong>.</li><li><strong>Outside/inside:</strong> not openable.</li></ul>
more details

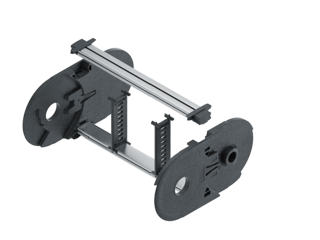

UA1995 RSH 030
Stay variant RSH 030 – with outside detachable stays
<ul><li>Aluminum profile bars for light to medium loads. Assembly without screws.</li><li>Available customized in <strong>1 mm grid</strong>.</li><li><strong>Outside:</strong> release by rotating 90°.</li></ul>
more details

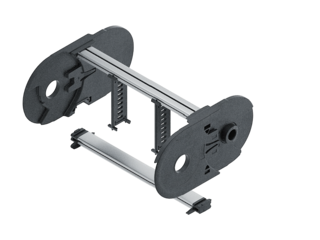

UA1995 RSH 040
Stay variant RSH 040 – with inside detachable stays
<ul><li>Aluminum profile bars for light to medium loads. Assembly without screws.</li><li>Available customized in <strong>1 mm grid</strong>.</li><li><strong>Inside:</strong> release by rotating 90°.</li></ul>
more details

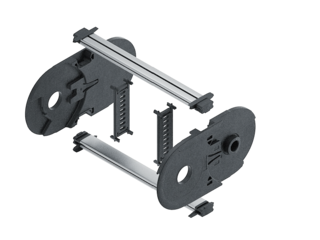

UA1995 RSH 070
Stay variant RSH 040 – with inside detachable stays
<ul><li>Aluminum profile bars for light to medium loads. Assembly without screws.</li><li>Available customized in <strong>1 mm grid</strong>.</li><li><strong>Inside:</strong> release by rotating 90°.</li></ul>
more details
Installation dimensions

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR
[mm]		H
[mm]		Hz
[mm]		LB
[mm]		UB
[mm]
150410440680250
210530560860310
250610640990350
3007107401150400
3508108401300450
4009109401460500
500111011401770600

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.

Intrinsic cable carrier weight qk = 3.85 kg/m with Bi 196 mm. For other inner widths, the maximum additional load changes.

Speed
up to 10 m/s

Acceleration
up to 25 m/s2

Travel length
up to 9 m

Additional load
up to 50 kg/m

GLIDING ARRANGEMENT
GO module with chain links optimized for gliding*

* only design 070

KR
[mm]		H
[mm]		GO module RKR
[mm]		LB
[mm]		UB
[mm]
1503304001805890
21033040021801010
25033040023901070
30033040026901160
35033040030901310
40033040034901450
50033040042801740

Speed
up to 8 m/s

Acceleration
up to 20 m/s2

Travel length
up to 200 m

Additional load
up to 50 kg/m

The gliding cable carrier must be guided in a channel.

The GO module mounted on the driver is a defined sequence of 5 adapted KR/RKR link plates.

Glide shoes must be used for gliding applications.
