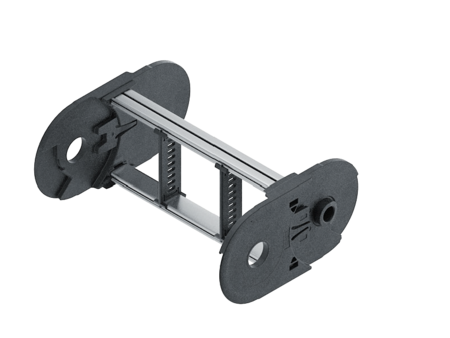

Stay variant RSH 020 – closed frame

Properties

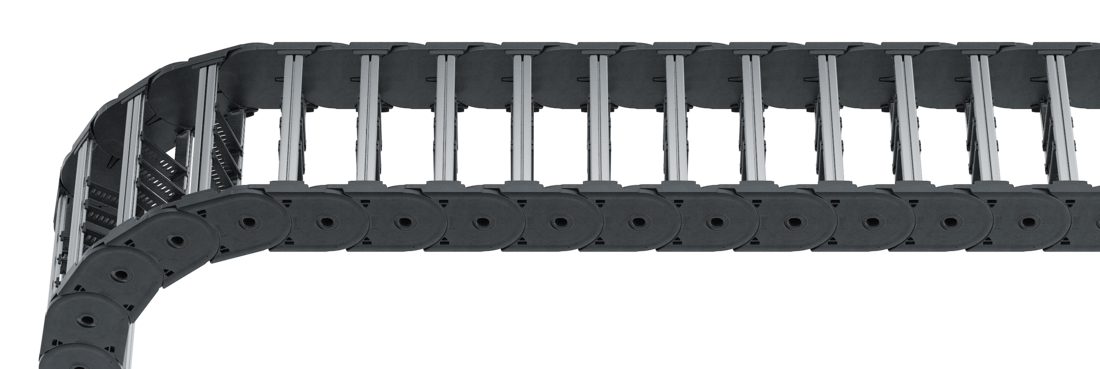

  • Aluminum profile bars for light to medium loads. Assembly without screws.
  • Available customized in 1 mm grid.
  • Outside/inside: not openable.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 66 - 600 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">99.5</td> <td class="hi red">80</td> <td class="hg">110</td> <td class="hgdash">116.5</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 66 - 600 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 30</td> <td class="bef">Bi + 36</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">4.168 – 4.173</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
150 210 250 300 350 400 500

Order example

UA1995
Type
•
150
Bi [mm]
•
RSH 020
Stay variant
•
210
KR [mm]
-
3582
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, the dividers can be attached by a fixing profile, available as an accessory (version B). The fixing profile must be installed at the factory.

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A101612––
B1017.513.52.5–

Number of dividers for design RSH 020 depending on Bi

Divider system TS3
with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

<p>Divider version A</p>
<p>End divider</p>
Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A8/4*14102

Number of dividers for design RSH 020 depending on Bi
* For End divider

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

ax (centre distance of dividers) [mm]

ac (usable width of inner chamber) [mm]

141619232428293233343839
101215192024252829303435
434448495458596468697478
394044455054556064657074
7980848889949699112
7576808485909295108

An additional central support is required when using plastic partitions with ax > 49 mm.

Order example

TS3
Divider system
•
A
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 27 Nm for screws M8

Connection point
F – fixed point
M – driver

Connection type
U – Universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
