UA1250
UA1250
Pitch
25 mm
25 mm
Inner height
17.5 mm
17.5 mm
Inner widths
30 - 50 mm
30 - 50 mm
Bending radii
28 - 100 mm
28 - 100 mm
Stay Variants
UA1250.020
more details
Stay Variants
UA1250.020

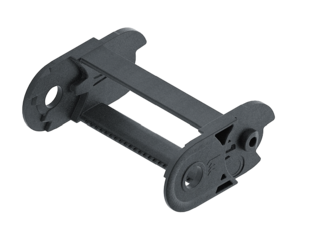

Closed frame
- Weight-optimised, closed plastic frame with particularly high torsional rigidity.
- Outside/inside: not openable.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 28 | 79 | 104 | 138 | 65 |
| 38 | 99 | 124 | 169 | 75 |
| 45 | 113 | 138 | 191 | 82 |
| 60 | 143 | 168 | 238 | 97 |
| 75 | 173 | 198 | 286 | 112 |
| 100 | 223 | 248 | 364 | 137 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.36 kg/m with Bi 50 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 1.6 m
Additional load
up to 4 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 30 m/s2
Travel length
up to 60 m
Additional load
up to 4 kg/m
The gliding cable carrier must be guided in a channel.
