UA1555

UA1555

Pitch
55.5 mm
Inner height
38 mm
Inner widths
50 - 150 mm
Bending radii
63 - 200 mm
Stay Variants

Stay Variants

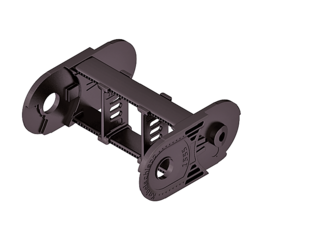

UA1555.020
Closed frame
  • Weight-optimised, closed plastic frame with particularly high torsional rigidity.
  • Outside/inside: not openable.
more details

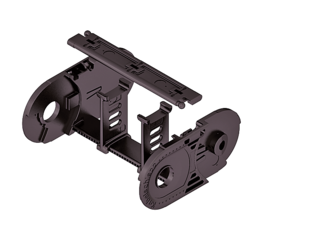

UA1555.030
Frame with outside detachable stays
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Outside: openable and detachable.
more details

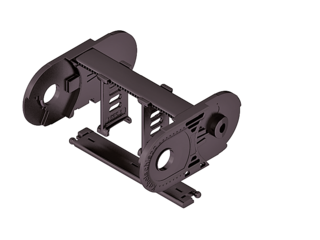

UA1555.040
Frame with inside detachable stays
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Inside: openable and detachable.
more details
Installation dimensions

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR
[mm]
H
[mm]
Hz
[mm]
LB
[mm]
UB
[mm]
63176216309145
80210240362165
100250280425185
125300330504210
160370400614245
200450480740285

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.

Intrinsic cable carrier weight qk = 1.32 kg/m with Bi 100 mm. For other inner widths, the maximum additional load changes.

Speed
up to 9 m/s

Acceleration
up to 45 m/s2

Travel length
up to 6.3 m

Additional load
up to 10 kg/m


GLIDING ARRANGEMENT
GO module with chain links optimized for gliding

KR
[mm]
H
[mm]
GO module RKR
[mm]
LB
[mm]
UB
[mm]
63150250939458
80150250994473
1001502501105510
1251502501272567
1601502501438612
2001502501771730

Speed
up to 3 m/s

Acceleration
up to 20 m/s2

Travel length
up to 125 m

Additional load
up to 10 kg/m

The gliding cable carrier must be guided in a channel.

The GO module mounted on the driver is a defined sequence of 5 adapted KR/RKR link plates.

Glide shoes must be used for gliding applications.

Only designs 020 and 030 can be used for a gliding arrangement.
