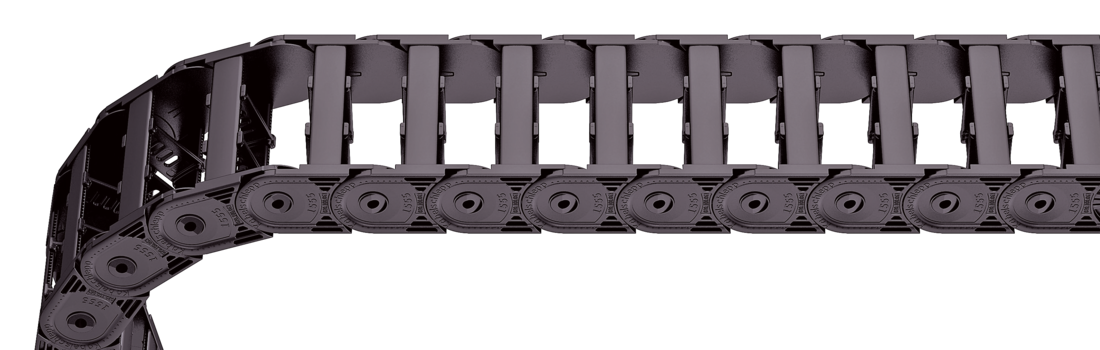

UA1555.020

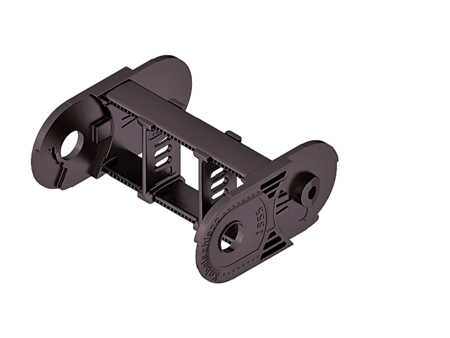

Stay variant 020 – closed frame

Properties

Weight-optimised, closed plastic frame with particularly high torsional rigidity.
Outside/inside: not openable.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 50 - 150 mm

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length Lk: Lk ≈ LS/2 + LB

Cable carrier length Lk rounded to pitch t

B_i [mm]
50	75	100	125	150

KR [mm]
63	80	100	125	160	200

Order example

UA1555

Type

•

020

Stay variant

•

125

B_i [mm]

•

160

KR [mm]

1887

Lk [mm]

Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on every 2^nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, divider with arresting cams are available. The locking cams click into place in the locking grids in the stays (version B).

Divider system TS0
without height separation

Vers.	aT min [mm]	ax min [mm]	ac min [mm]	ax grid [mm]	nT min
A	5	10	7.5	–	–

Number of dividers for design 020 depending on Bi

Order example

TS0

Divider system

•

Version

•

n_T

End connectors End connectors

Recommended tightening torque: 5 Nm for screws M5 - 8.8

Bi [mm]	nz
50	2 x 3
75	2 x 5
90	2 x 6
100	2 x 7
125	2 x 9
150	2 x 11

The end connectors are optionally also available with strain relief comb or with C-rail Art. no. 3931 (1 on each side) for clamps. Please state when ordering.

Connection point
F – fixed point
M – driver

Connection type
U – Universal mounting bracket

Order example

UMB

End connector

•

Connection point

Connection type

We recommend the use of strain reliefs at the driver and fixed point.

Recommended tightening torque: 6 Nm for screws M6 - 8.8

Bi [mm]	nz
50	2 x 4
75	2 x 6
100	2 x 8
125	2 x 10
150	2 x 12

The end connectors are optionally also available without strain relief comb. Please state when ordering.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Order example

End connector

•

Connection point

Connection type

Recommended tightening torque: 6 Nm for screws M6 - 8.8 and washers

Bi [mm]	nz
50	2 x 4
75	2 x 6
100	2 x 8
125	2 x 10
150	2 x 12

The end connectors are optionally also available without strain relief comb. Please state when ordering.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Order example

End connector U0555

End connector

•

Connection point

Connection type

UA1555.020

Stay variant 020 – closed frame

Properties

Dimensions Dimensions

Order example

Inner Distribution Inner Distribution

Divider systems

Divider system TS0 without height separation

Order example

End connectors End connectors

Universal end connectors UMB – plastic (standard) The universal mounting brackets (UMB) are made from plastic and can be mounted from above, from below or on the face side.

Order example

Single-part end connectors short – plastic The plastic end connectors can be connected from above or below. The connection type can be changed by altering the position of the end connector.

Order example

Single-part end connectors long – plastic The plastic end connectors can be connected from above or below and allow a 1: 1 replacement of the UNIFLEX 0555 in the connection area. The connection type can be changed by altering the position of the end connector.

Order example

Divider system TS0
without height separation
