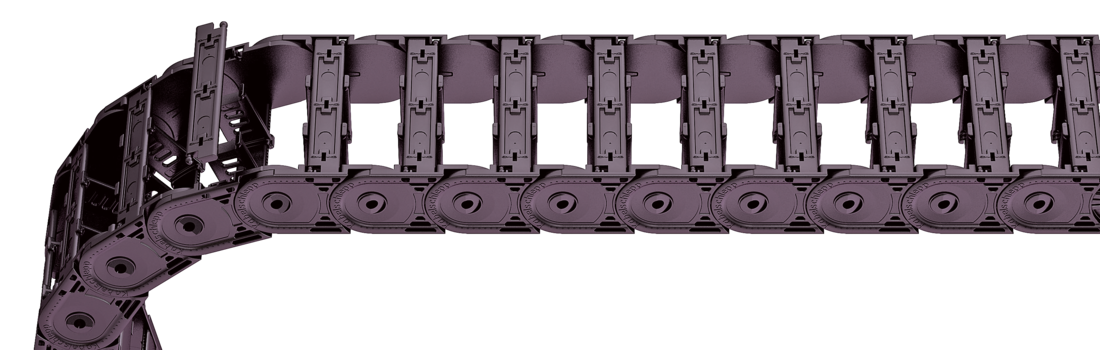

UA1555.030

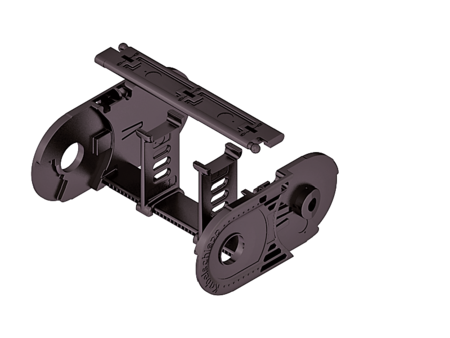

Stay variant 030 – with outside opening and detachable stays
Properties
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Swivable and detachable left or right in any position.
- Outside: openable and detachable.
Dimensions Dimensions
| Bi [mm] | ||||
|---|---|---|---|---|
| 50 | 75 | 100 | 125 | 150 |
| KR [mm] | |||||
|---|---|---|---|---|---|
| 63 | 80 | 100 | 125 | 160 | 200 |
Order example
Inner Distribution Inner Distribution
Divider systems
The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).
For applications with lateral acceleration and lying on the side, divider with arresting cams are available. The locking cams click into place in the locking grids in the stays (version B).
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 5 | 10 | 7.5 | – | – |
| B | 5 | 10 | 7.5 | 2.5 | – |
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | aT max [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|---|
| A | 5 | 20 | 10 | 7.5 | – | 2 |
| B | 5 | 20.5 | 10 | 7.5 | 2.5 | 2 |
Divider system TS3
with height separation consisting of plastic section subdivisions
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 5 | 15 | 10 | 2 |
The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.
ax (centre distance of dividers) [mm] | |||||||||
ac (usable width of inner chamber) [mm] | |||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 45 | 55 | 65 | 75 |
| 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 |
Order example
End connectors End connectors
| Bi [mm] | nz |
|---|---|
| 50 | 2 x 3 |
| 75 | 2 x 5 |
| 90 | 2 x 6 |
| 100 | 2 x 7 |
| 125 | 2 x 9 |
| 150 | 2 x 11 |
The end connectors are optionally also available with strain relief comb or with C-rail Art. no. 3931 (1 on each side) for clamps. Please state when ordering.
Connection point
F – fixed point
M – driver
Connection type
U – Universal mounting bracket
Order example
We recommend the use of strain reliefs at the driver and fixed point.
| Bi [mm] | nz |
|---|---|
| 50 | 2 x 4 |
| 75 | 2 x 6 |
| 100 | 2 x 8 |
| 125 | 2 x 10 |
| 150 | 2 x 12 |
The end connectors are optionally also available without strain relief comb. Please state when ordering.
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside
Order example
| Bi [mm] | nz |
|---|---|
| 50 | 2 x 4 |
| 75 | 2 x 6 |
| 100 | 2 x 8 |
| 125 | 2 x 10 |
| 150 | 2 x 12 |
The end connectors are optionally also available without strain relief comb. Please state when ordering.
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside
