UA1665

UA1665

Pitch
66.5 mm
Inner height
44 mm
Inner widths
50 - 250 mm
Bending radii
75 - 300 mm
Stay Variants

Stay Variants

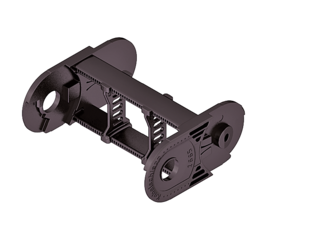

UA1665.020
Closed frame
  • Weight-optimised, closed plastic frame with particularly high torsional rigidity.
  • Outside/inside: not openable.
more details

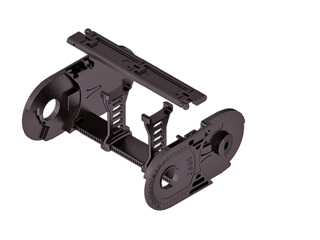

UA1665.030
Frame with outside detachable stays
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Outside: openable and detachable.
more details

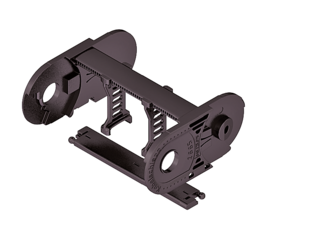

UA1665.040
Frame with inside detachable stays
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Inside: openable and detachable.
more details

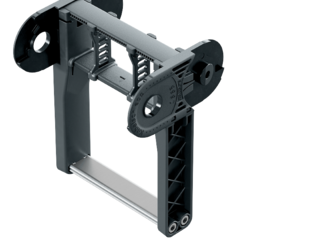

UA1665.RMAI
Mounting frame stay
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Inside: threaded joint easy to release
more details

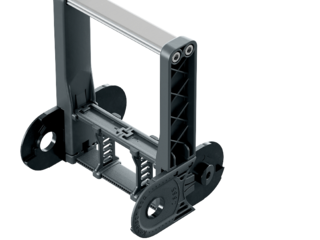

UA1665.RMAO
Mounting frame stay
  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Outside: threaded joint easy to release
more details
Installation dimensions

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR
[mm]
H
[mm]
Hz
[mm]
LB
[mm]
UB
[mm]
75210245369172
100260295448197
120300335511217
140340375574237
200460495762297
250560595919347
3006606951076397

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.

Intrinsic cable carrier weight qk = 2.43 kg/m with Bi 200 mm. For other inner widths, the maximum additional load changes.

Speed
up to 8 m/s

Acceleration
up to 40 m/s2

Travel length
up to 7 m

Additional load
up to 15 kg/m


GLIDING ARRANGEMENT
GO module with chain links optimized for gliding

KR
[mm]
H
[mm]
GO module RKR
[mm]
LB
[mm]
UB
[mm]
751803001118546
1001803001251593
1201803001318609
1401803001450654
2001803001783753
2501803002182864
30018030025811035

Speed
up to 3 m/s

Acceleration
up to 15 m/s2

Travel length
up to 150 m

Additional load
up to 15 kg/m

The gliding cable carrier must be guided in a channel.

The GO module mounted on the driver is a defined sequence of 5 adapted KR/RKR link plates.

Glide shoes must be used for gliding applications.

Only designs 020 and 030 can be used for a gliding arrangement.
