UA1775
77.5 mm
56 mm
100 - 400 mm
90 - 340 mm
Stay Variants

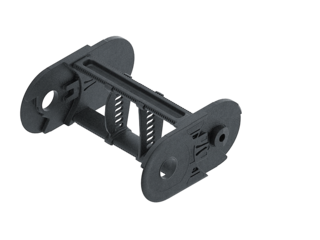

UA1775.020
Closed frame
- Weight-optimised, closed plastic frame with particularly high torsional rigidity.
- Outside/inside: not openable.

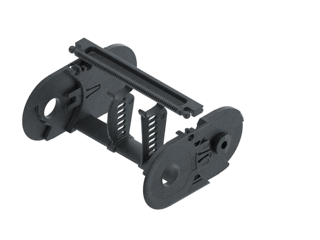

UA1775.030
Frame with outside detachable stays
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Outside: openable and detachable.

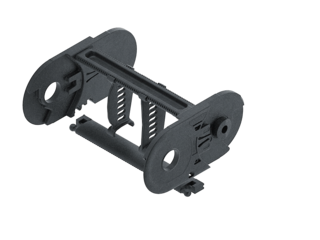

UA1775.040
Frame with inside detachable stays
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Inside: openable and detachable.
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 90 | 257 | 297 | 438 | 206 |
| 115 | 307 | 347 | 516 | 231 |
| 140 | 357 | 397 | 595 | 256 |
| 165 | 407 | 447 | 673 | 281 |
| 190 | 457 | 497 | 752 | 306 |
| 240 | 557 | 597 | 909 | 356 |
| 285 | 647 | 687 | 1050 | 401 |
| 340 | 757 | 797 | 1223 | 456 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 3.03 kg/m with Bi 150 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 35 m/s2
Travel length
up to 6.8 m
Additional load
up to 25 kg/m
GLIDING ARRANGEMENT
GO module with chain links optimized for gliding
| KR [mm] | H [mm] | GO module RKR [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 90 | 231 | 400 | 1313 | 643 |
| 115 | 231 | 400 | 1440 | 688 |
| 140 | 231 | 400 | 1575 | 733 |
| 165 | 231 | 400 | 1715 | 779 |
| 190 | 231 | 400 | 1868 | 828 |
| 240 | 231 | 400 | 2225 | 951 |
| 285 | 231 | 400 | 2580 | 1081 |
| 340 | 231 | 400 | 3015 | 1240 |
Speed
up to 3 m/s
Acceleration
up to 8 m/s2
Travel length
up to 200 m
Additional load
up to 25 kg/m
The gliding cable carrier must be guided in a channel.
The GO module mounted on the driver is a defined sequence of 5 adapted KR/RKR link plates.
Glide shoes must be used for gliding applications.
