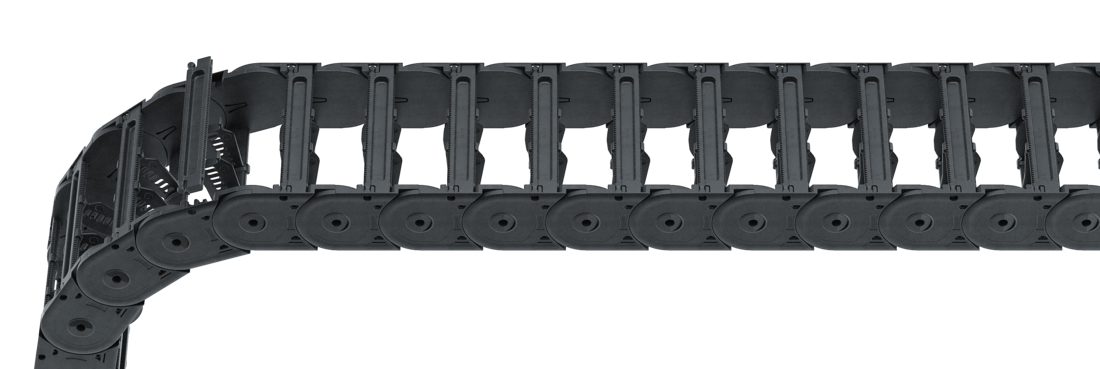

UA1775.030

UA1775.030

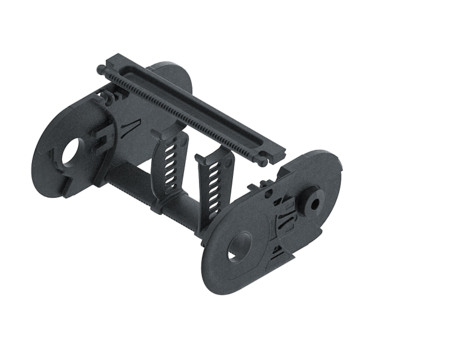

Stay variant 030 – with outside opening and detachable stays

Properties

  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Swivable and detachable left or right in any position.
  • Outside: openable and detachable.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 100 - 400 mm

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">77.5</td> <td class="hi red">56</td> <td class="hg">77</td> <td class="hgdash">81.6</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 26</td> <td class="bef">Bi + 30</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">2.831 – 4.224</td> </tr> </tbody> </table>
Bi [mm]
100 125 150 175 200 225 250 275 300 325
350 375 400
KR [mm]
90 115 140 165 190 240 285 340

Order example

UA 1775
Type
•
030
Stay variant
•
150
Bi [mm]
•
140
KR [mm]
-
3100
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, divider with arresting cams are available. The locking cams click into place in the locking grids in the stays (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A5107––
B51072.5–

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A5107–2
B51072.52

Divider system TS3
with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

<p>Divider version A</p>
<p>End divider</p>
Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A5/2*14102

* For End divider

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

ax (centre distance of dividers) [mm]

ac (usable width of inner chamber) [mm]

141619232428293233343839
101215192024252829303435
434448495458596468697478
394044455054556064657074
7980848889949699112
7576808485909295108

When using partitions with ax > 49 mm we recommended an additional preferential central support.

Order example

TS3
Divider system
•
A
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 27 Nm for screws M8
Bi
[mm]		nz
1002 x 7
1252 x 9
1502 x 11
1752 x 13

The end connectors are also available as an option with strain relief comb or with C-rail Art. no 3931 (1 on each side) for clamps. Please state when ordering.

Connection point
F – fixed point
M – driver

Connection type
U – Universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
