TKHP90-R / TKHP90-RSD
90 mm
92 mm
100 - 800 mm
250 - 500 mm
Stainless steel ball bearings with application-specific lubrication and plastic rollers ensure quiet and smooth operation. Integrated, low-wear damping systems minimize the mechanical load for the entire system. The cable carrier type TKHP90-RSD (Shock Damping) uses roller damping. The rollers of the RSD variant are damped when they pass over each other, which reduces both the mechanical load and the noise pollution when they roll over by up to 50 %. The use of roller damping is not always necessary. An undamped cable carrier system can also be used for low-speed applications.
- TKHP90-R with rollers
- TKHP90-RSD with rollers and shock absorber
- suitable for all long travel applications
- quiet and low-vibration operation
- space-saving and cost-optimized
- long service life – low maintenance
- easy access to rollers
- minimized loads on cable carrier and cables
- low push and pull forces
- high travel speed and acceleration
- large additional loads possible
- retrofit of existing systems
- exchange other makes up to 100 %
- integration of existing guide channels
Stay Variants

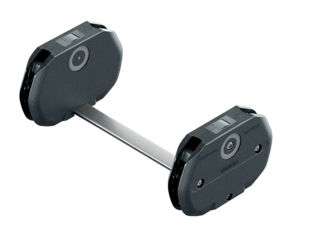

TKHP90-R / TKPH90-RSD RMF
Frame stay, solid
- Aluminum profile bars for heavy loads and large cable carrier widths. Easy threaded connection.
- Inside/outside: Threaded joint easy to release.
Installation dimensions
ROLLING ARRANGEMENT | Cable carrier with integrated roller
| KR [mm] | H [mm] | GO module RKR [mm] | LB [mm] | UB [mm] | qz max [kg/m] |
|---|---|---|---|---|---|
| 250 | 351 | 600 | 1840 | 1030 | 100 |
| 310 | 351 | 600 | 2200 | 1230 | 100 |
| 360 | 351 | 600 | 2520 | 1400 | 90 |
| 500 | 351 | 600 | 3410 | 1880 | 75 |
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 1500 m
Additional load
up to 100 kg/m
The rolling cable carrier must be guided in a channel.
The GO module mounted on the driver is a defined sequence of 6 adapted KR/RKR link plates.
