TKHP® series

TKHP® series

High-Performance cable carriers for long travel lengths and high additional loads

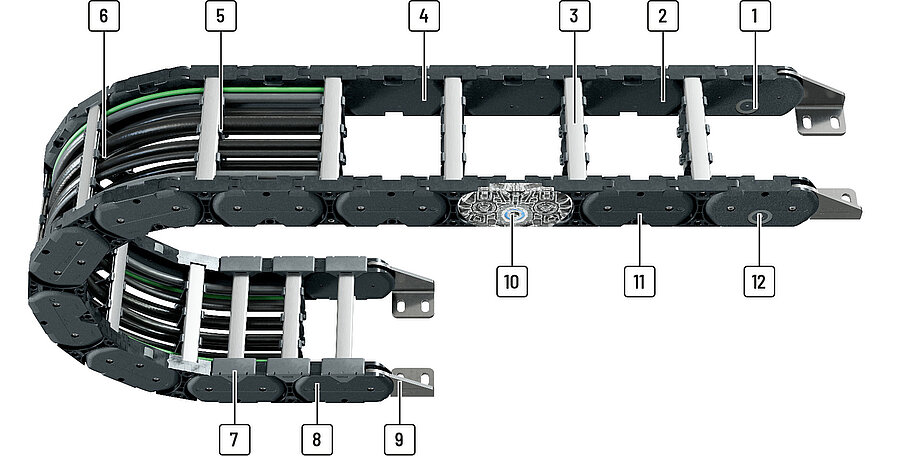

  1. Aluminum stays available in 1 mm width sections
  2. Plastic chain link plates
  3. Quick and easy opening to the inside or outside for cable laying
  4. Cable-friendly interior – no interfering edges
  5. Fixable dividers
  6. Dividers and subdivision for separating the cables
  7. Replaceable glide shoes for increased service life in gliding application
  8. Robust, multiple stop system
  9. End connectors made of seawater-resistant stainless steel
  10. With integrated roll for standard guide channels
  11. Easy replacement of chain links within the cable carrier
  12. With roller damping
Features

Features

  • Massive, enclosed, stain-repellend stop system
  • Massive sidebands through robust double fork-bracket-construction
  • Sidebands easy to assemble
  • Reinforced symmetrically arranged pin bore connection for better force transmission
  • Integrated noise damping
  • Quick and easy opening to the inside or outside for cable laying
  • Soil-resistant outer contour
  • Easy change of components
  • Maintenance-free
  • Linear force curve in the sideband
  • Quiet and low-wear operating through polygon-optimized contour and radii
  • Reduce drive power through less friction
Inner width (Bi) in 1 mm increments
Long travel length
High additional load
Opens inward/outward
Sliding dividers
Fixable dividers
Height separation possible
Roller chain

Very smooth running of the roller system due to almost continuous running surface.

A non-slip structure on the running surface prevents one-sided roller wear after a standstill.

Roller chain for travel distances up to 1500 m.

RSD version with roller damping to reduce noise and wear by up to 50 %.

Types

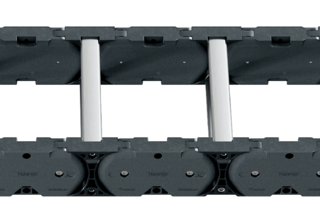

TKHP85
  • Inner height [hi]: 58 mm
  • Inner widths [Bi]: 100 - 800 mm
  • Pitch [t]: 85 mm
  • Bending [KR]: 240 - 400 mm
more details

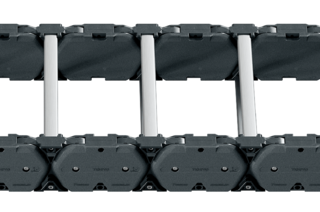

TKHP90
  • Inner height [hi]: 92 mm
  • Inner widths [Bi]: 100 - 800 mm
  • Pitch [t]: 90 mm
  • Bending [KR]: 250 - 500 mm
more details

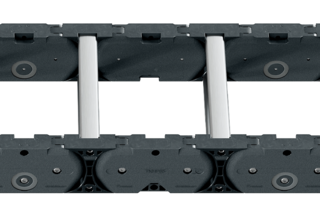

TKHP85-R / TKHP85-RSD
  • Inner height [hi]: 58 mm
  • Inner widths [Bi]: 100 - 800 mm
  • Pitch [t]: 85 mm
  • Bending [KR]: 240 - 400 mm
more details

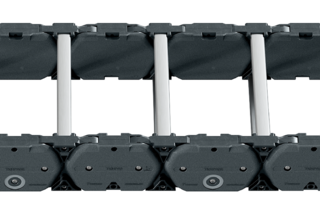

TKHP90-R / TKHP90-RSD
  • Inner height [hi]: 92 mm
  • Inner widths [Bi]: 100 - 800 mm
  • Pitch [t]: 90 mm
  • Bending [KR]: 250 - 500 mm
more details
Type hi [mm] Bi [mm] t [mm] KR [mm]
TKHP85 58 100 - 800 85 240 - 400
TKHP90 92 100 - 800 90 250 - 500
TKHP85-R / TKHP85-RSD 58 100 - 800 85 240 - 400
TKHP90-R / TKHP90-RSD 92 100 - 800 90 250 - 500
