TKHP90
TKHP90
Pitch
90 mm
90 mm
Inner height
92 mm
92 mm
Inner widths
100 - 800 mm
100 - 800 mm
Bending radii
250 - 500 mm
250 - 500 mm
Stay Variants
TKPH90 RMF
more details

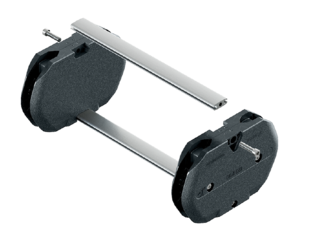

Stay Variants
TKPH90 RMF
Frame stay, solid
- Aluminum profile bars for heavy loads and large cable carrier widths. Easy threaded connection.
- Inside/outside: Threaded joint easy to release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 250 | 675.5 | 860 | 965 | 510 |
| 310 | 795.5 | 980 | 1154 | 570 |
| 360 | 895.5 | 1080 | 1311 | 620 |
| 500 | 1175.5 | 1360 | 1751 | 680 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 10 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 8 m/s
Acceleration
up to 20 m/s2
Travel length
up to 13.5 m
Additional load
up to 100 kg/m
