TKHP85
85 mm
58 mm
100 - 800 mm
240 - 400 mm
Stay Variants
TKPH85 RMF

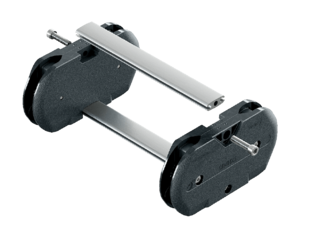

Frame stay, solid
- Aluminum profile bars for heavy loads and large cable carrier widths. Easy threaded connection.
- Inside/outside: Threaded joint easy to release.
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 240 | 574 | 704 | 930 | 300 |
| 300 | 694 | 824 | 1120 | 360 |
| 350 | 794 | 924 | 1270 | 410 |
| 400 | 894 | 1024 | 1430 | 460 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 10 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 5 m/s
Acceleration
up to 20 m/s2
Travel length
up to 5.9 m
Additional load
up to 30 kg/m
GLIDING ARRANGEMENT | GO MODULE
with chain links optimized for gliding
| KR [mm] | H [mm] | GO module RKR [mm] | LB [mm] | UB [mm] | qz max [kg/m] |
|---|---|---|---|---|---|
| 240 | 252 | 400 | 2235 | 983 | 60 |
| 300 | 252 | 400 | 2830 | 1224 | 60 |
| 350 | 252 | 400 | 3255 | 1393 | 40 |
| 400 | 252 | 400 | 3765 | 1601 | 20 |
Speed
up to 5 m/s
Acceleration
up to 2.5 m/s2
Travel length
up to 200 m
Additional load
up to 60 kg/m
The gliding cable carrier must be guided in a channel.
The GO module mounted on the driver is a defined sequence of adapted KR/RKR link plates.
Glide shoes must be used for gliding applications.
