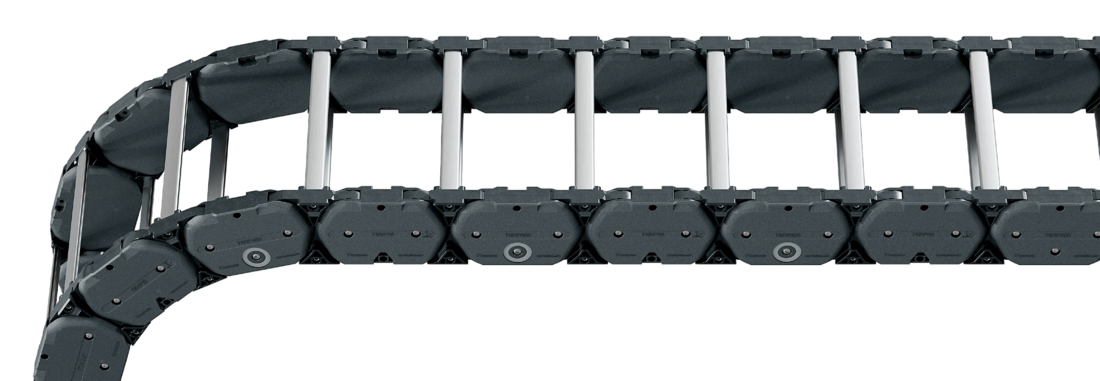

TKHP90-R / TKPH90-RSD RMF

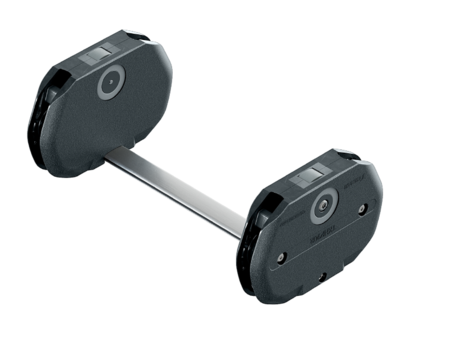

Aluminum stay RMF – frame stay solid
Properties
- Aluminum profile bars for heavy loads and large cable carrier widths. Easy threaded connection.
- Available customized in 1 mm grid.
- Inside/outside: Threaded joint easy to release.
Dimensions Dimensions
| KR [mm] * | |||
|---|---|---|---|
| 250 | 310 | 360 | 500 |
Order example
Inner Distribution Inner Distribution
Divider systems
As a standard, the divider system is mounted on every 2nd chain link on the inside plate. As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).
For applications with lateral acceleration and free hanging on the side, the dividers can be attached by simple insertion of a fixing profile into the RMF stay, available as an accessory (version B).
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 7.5 | 15 | 11 | – | – |
| B | 10 | 15 | 11 | 5 | – |
The dividers can be moved within the cross section (version A) or fixed (version B).
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 7.5 | 15 | 11 | – | – |
| B | 10 | 15 | 11 | 5 | – |
The dividers can be moved within the cross section (version A) or fixed (version B).
Order example
Please state the designation of the divider system (TS0, TS1,...), the version, and the number of dividers per cross section [nT].
When using divider systems with height separation (TS1), please additionally state the position (e.g. VD1) viewed from the left driver belt. You are welcome to add a sketch to your order.
End connectors End connectors
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
Connection surface
A – connecting surface outside
I – connecting surface inside
Order example
We recommend the use of strain reliefs at the driver and fixed point.
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
Connection surface
A – connecting surface outside
I – connecting surface inside
