M0650
65 mm
36 - 42 mm
50 - 600 mm
75 - 350 mm
Stay Variants

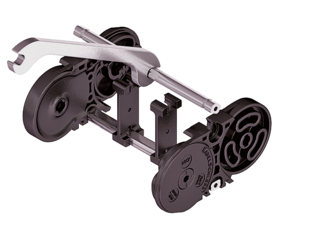

MC0650 RS
Frame stay, narrow "The standard"
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by turning by 90°.

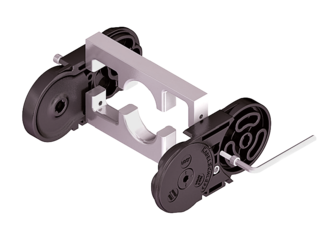

MC0650 LG
Hole stay, split version
- Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
- Outside/inside: Screw-fixing easy to release.

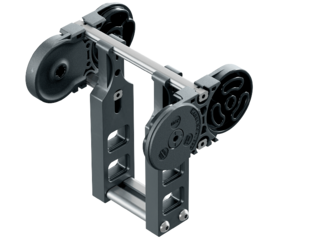

MC0650 RMAI
Mounting frame stay
- Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
- Inside: Screw-fixing easy to release.

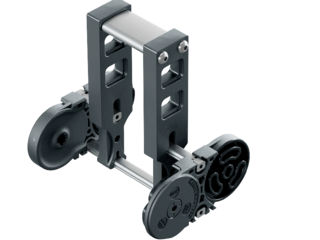

MC0650 RMAO
Mounting frame stay
- Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
- Outside: Screw-fixing easy to release.

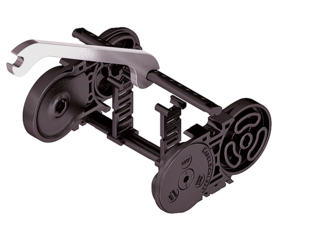

ME0650 RE
Frame screw-in stay
- Plastic profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by turning by 90°.

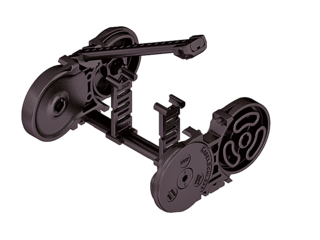

MK0650 RD
Frame stay with hinge
- Plastic profile bars with hinge for light to medium loads. Assembly without screws.
- Outside: swivable to both sides.
- Inside: release by turning by 90°.
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 75 | 207 | 242 | 366 | 169 |
| 95 | 247 | 282 | 429 | 189 |
| 115 | 287 | 322 | 492 | 209 |
| 145 | 347 | 382 | 586 | 239 |
| 175 | 407 | 442 | 680 | 269 |
| 220 | 497 | 532 | 822 | 314 |
| 260 | 577 | 612 | 948 | 354 |
| 275 | 607 | 642 | 994 | 369 |
| 300 | 657 | 692 | 1073 | 394 |
| 350 | 757 | 792 | 1230 | 444 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 2.4 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 40 m/s2
Travel length
up to 4.8 m
Additional load
up to 25 kg/m
GLIDING ARRANGEMENT | GO MODULE
with chain links optimized for gliding
| KR [mm] | H [mm] | GO module RKR [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 95 | 171 | 300 | 1180 | 560 |
| 115 | 171 | 300 | 1310 | 605 |
| 145 | 171 | 300 | 1440 | 640 |
| 175 | 171 | 300 | 1635 | 705 |
| 220 | 171 | 300 | 1950 | 810 |
| 260 | 171 | 300 | 2275 | 926 |
| 275 | 171 | 300 | 2405 | 973 |
| 300 | 171 | 300 | 2535 | 1014 |
| 350 | 171 | 300 | 2925 | 1152 |
Speed
up to 8 m/s
Acceleration
up to 20 m/s2
Travel length
up to 220 m
Additional load
up to 25 kg/m
The gliding cable carrier must be guided in a channel.
The GO module mounted on the driver is a defined sequence of 5 adapted KR/RKR link plates.
Glide shoes have to be used for gliding applications.
