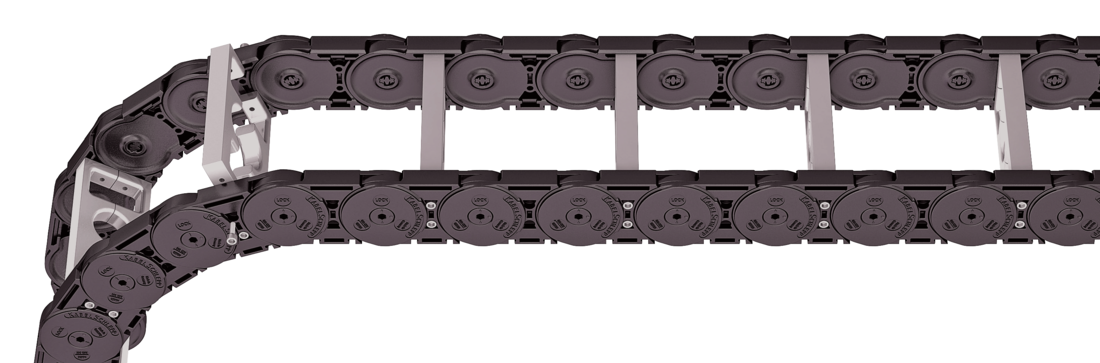

MC0650 LG

MC0650 LG

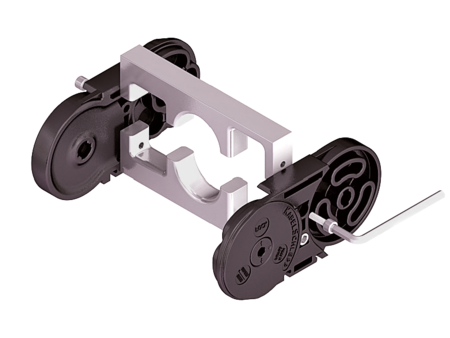

Aluminum stay LG – Hole stay, split version

Properties

  • Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
  • Available customized in 1 mm width sections.
  • Outside/inside: Screw-fixing easy to release.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 75 - 600 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Calculating the stay width
Stay width BSt: BSt = ∑D + ∑c + 2 a0
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="dmax red"><strong>D<sub>max</sub></strong><br>[mm]</th> <th class="dmin"><strong>D<sub>min</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]</th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <th class="cmin"><strong>c<sub>min</sub></strong><br>[mm]</th> <th class="a0min"><strong>a<sub>0</sub> min</strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk50"><strong>q<sub>k</sub> 50%</strong><br>[kg/m]<sup>**</sup></th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">65</td> <td class="hi">36</td> <td class="dmax red">36</td> <td class="dmin">9</td> <td class="hg">57</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi"> 75 - 600 </td> <td class="bst red"> 79 - 604 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">BSt + 30</td> <td class="bef">BSt + 30</td> <td class="cmin">4</td> <td class="a0min">10</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk50">2.39 – 4.66</td> </tr> </tbody> </table>
* in 1 mm width sections ** Hole ratio of the hole stay approx. 50 %
KR [mm]
75 95 115 145 175 220 260 275 300 350
qk 50%: 2.39 – 4.66 mm Hole ratio of the hole stay approx. 50 %

Order example

MC0650
Type
•
300
Bi [mm]
•
LG
Stay variant
•
175
KR [mm]
-
1430
Lk [mm]
HS
Stay arrangement

End connectors End connectors

Recommended tightening torque: 11 Nm for cheese-head screws ISO 4762 - M6 - 8.8

Connection point
F – fixed point
M – driver

Connection type
U – universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection

Connection surface
I – connection surface inside
A – connection surface outside

Order example

Plastic/steel
Plastic/steel
End connector
•
F
•
M
Connection point
A
A
Connection type
A
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
