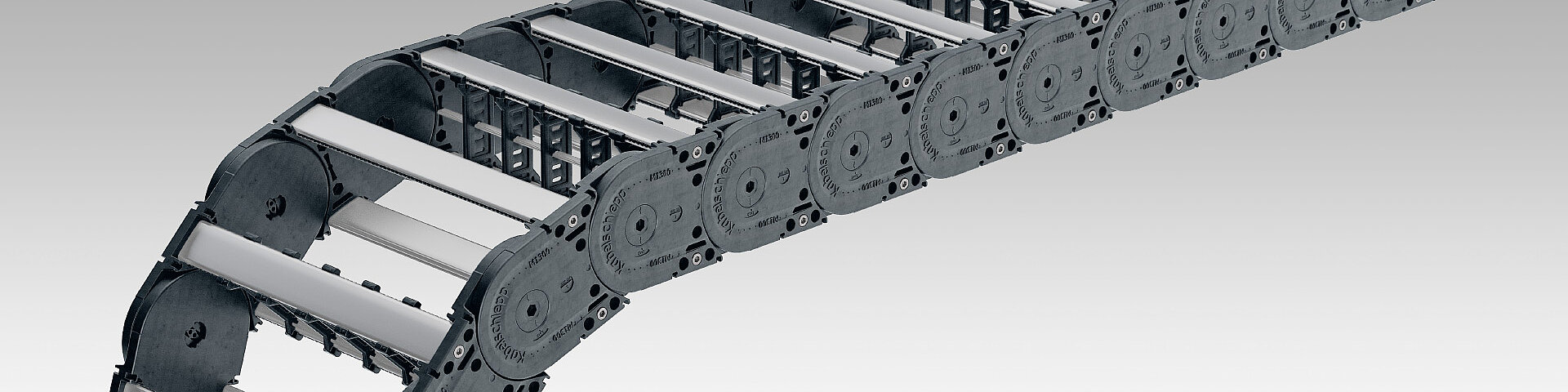

M series
M series

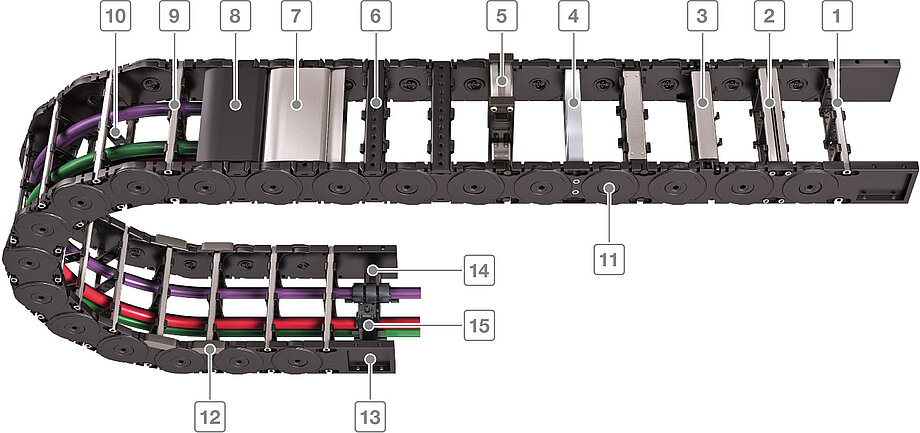

Variable cable carrier with extensive accessories and stay variants
- Aluminum stays available in 1 mm width sections
- 4-fold bolted aluminum stays for extreme loads
- Aluminum stays with ball joint
- Aluminum hole stays
- Mounting frame stays
- Plastic stays available in 4, 8 or 16 mm width sections
- Aluminum cover available in 1 mm width sections
- Plastic cover available in 8 or 16 mm width sections
- Can be opened quickly on the inside and the outside for cable laying
- Fixable dividers
- Locking bolts
- Replaceable glide shoes
- Universal end connectors (UMB)
- C-rail for strain relief elements
- Strain relief combs
Features
Features
- Encapsulated, dirt-resistant stroke system
- Durable sidebands through robust link plate design
- Easy assembly of side bands through bars with easy-toassemble locking bolts
- Long service life due to minimized hinge wear owing to the “life extending 2 disc principle“
- Large selection of vertical and horizontal stay systems and dividing options for your cables
- Versions with aluminum stays in 1 mm width sections up to 800 mm inner width
- Versions with plastic stays available in 4, 8 or 16 mm width sections
Inner width (Bi) in 1 mm increments
Inner width (Bi) in 4 mm increments
8Inner width (Bi) in 8 mm increments
Inner width (Bi) in 16 mm increments
Long travel length
High additional load
Opens inward/outward
Covered cable carrier
Sliding dividers
Fixable dividers
Height separation possible
ESD material
Ex-protection-material
Minimized hinge wear owing to the “life extending 2 disc principle“
Sturdy link plate design, encapsulated stroke system
Easy to assemble through locking bolts
Replaceable glide shoes for long service life for gliding applications
Types
more details
more details
more details
more details
more details
more details

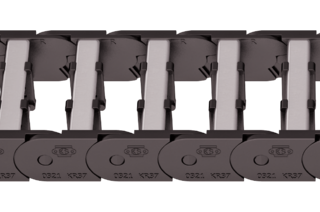

M0320
- Inner height [hi]: 19 mm
- Inner widths [Bi]: 25 - 280 mm
- Pitch [t]: 32 mm
- Bending [KR]: 37 - 200 mm

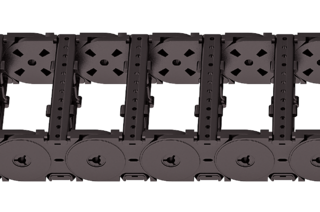

M0475
- Inner height [hi]: 28 mm
- Inner widths [Bi]: 24 - 280 mm
- Pitch [t]: 47.5 mm
- Bending [KR]: 55 - 300 mm

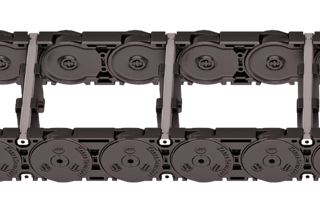

M0650
- Inner height [hi]: 36 - 42 mm
- Inner widths [Bi]: 50 - 600 mm
- Pitch [t]: 65 mm
- Bending [KR]: 75 - 350 mm

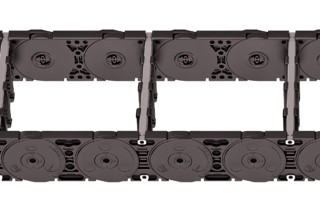

M0950
- Inner height [hi]: 50 - 58 mm
- Inner widths [Bi]: 45 - 600 mm
- Pitch [t]: 95 mm
- Bending [KR]: 140 - 380 mm

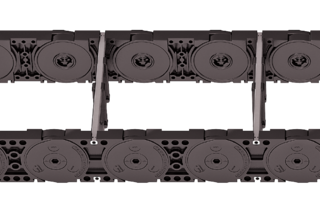

M1250
- Inner height [hi]: 66 - 76 mm
- Inner widths [Bi]: 71 - 800 mm
- Pitch [t]: 125 mm
- Bending [KR]: 180 - 500 mm

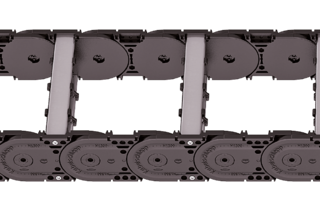

M1300
- Inner height [hi]: 87 - 98 mm
- Inner widths [Bi]: 100 - 800 mm
- Pitch [t]: 130 mm
- Bending [KR]: 150 - 500 mm
