M1250
125 mm
66 - 76 mm
71 - 800 mm
180 - 500 mm
Stay Variants

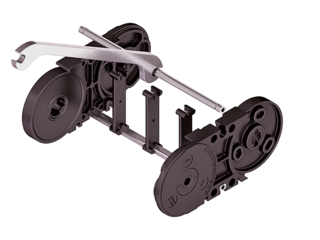

MC1250 RS
Frame stay, narrow “The standard”
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by turning by 90°.

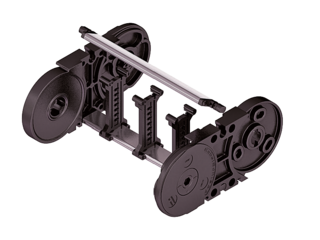

MC1250 RV
Frame stay, reinforced
- Aluminum profile bars with plastic adapter for medium to high loads and large cable carrier widths. Assembly without screws.
- Outside/inside: release by turning by 90°.

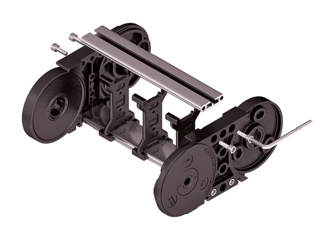

MC1250 RM
Frame stay, solid
- Aluminum profile bars for heavy loads and maximum cable carrier widths. Double threaded joints on both sides “Heavy Duty”.
- Inside/outside: Threaded joint easy to release.
MC1250 LG
Hole stay, split version
- Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
- Outside/inside: Screw-fixing easy to release.

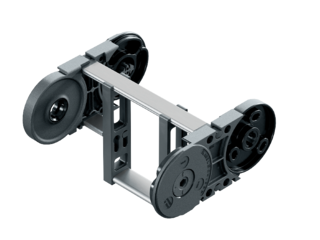

MC1250 RMAI
Mounting frame stay
- Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
- Inside: Screw-fixing easy to release.

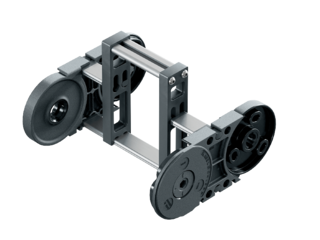

MC1250 RMAO
Mounting frame stay
- Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
- Outside: Screw-fixing easy to release.

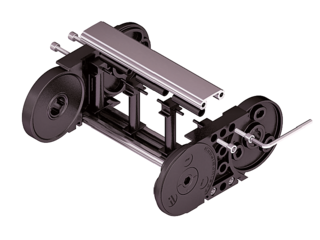

MC1250 RMR
Frame rolling stay
- Aluminum profile bars with rotating plastic rolling stay for highest requirements with gentle cable guiding. Double threaded joint on both sides.
- Inside/outside: threaded joint easy to release.

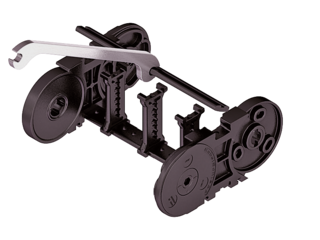

ME1250 RE
Frame screw-in stay
- Plastic profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by turning by 90°.

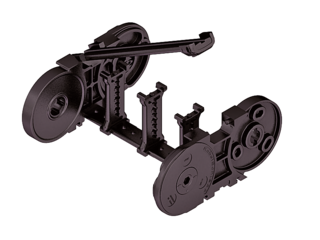

MK1250 RD
Frame stay with hinge
- Plastic profile bars with hinge for light to medium loads. Assembly without screws.
- Outside: swivable to both sides.
- Inside: release by turning by 90°.
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 180 | 456 | 506 | 816 | 353 |
| 220 | 536 | 586 | 942 | 393 |
| 260 | 616 | 666 | 1067 | 433 |
| 300 | 696 | 746 | 1193 | 473 |
| 340 | 776 | 826 | 1319 | 513 |
| 380 | 856 | 906 | 1444 | 553 |
| 500 | 1096 | 1146 | 1821 | 673 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 4.5 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 25 m/s2
Travel length
up to 9.7 m
Additional load
up to 65 kg/m
GLIDING ARRANGEMENT | GO MODULE
with chain links optimized for gliding
| KR [mm] | H [mm] | GO module RKR [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 180 | 288 | 500 | 2000 | 930 |
| 220 | 288 | 500 | 2250 | 1015 |
| 260 | 288 | 500 | 2500 | 1095 |
| 300 | 288 | 500 | 2750 | 1177 |
| 340 | 288 | 500 | 3125 | 1318 |
| 380 | 288 | 500 | 3375 | 1403 |
| 500 | 288 | 500 | 4375 | 1770 |
Speed
up to 8 m/s
Acceleration
up to 20 m/s2
Travel length
up to 320 m
Additional load
up to 65 kg/m
The gliding cable carrier must be guided in a channel.
The GO module mounted on the driver is a defined sequence of 4 adapted KR/RKR link plates.
Glide shoes have to be used for gliding applications.
