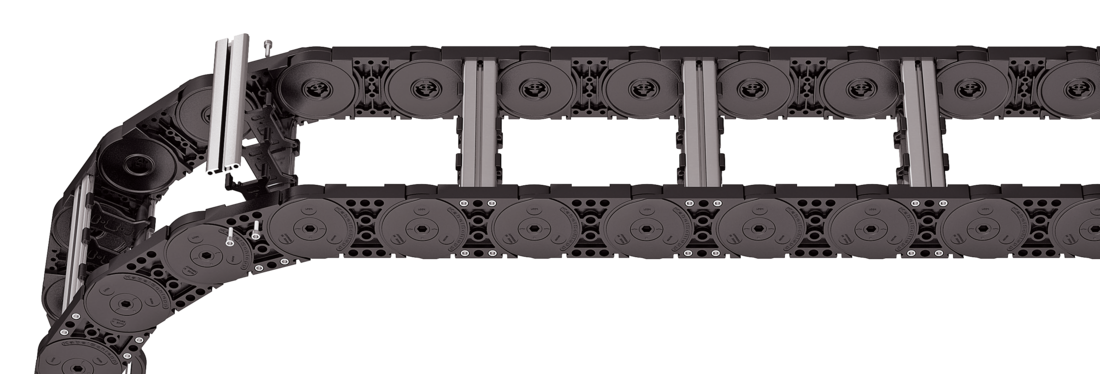

Aluminum stay RM – frame stay solid

Properties

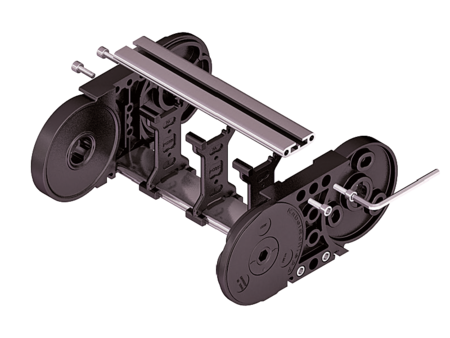

  • Aluminum profile bars for heavy loads and maximum cable carrier widths. Double threaded joints on both sides “Heavy Duty”.
  • Available customized in 1 mm grid.
  • Inside/outside: Threaded joint easy to release.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 100 - 800 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

For rough environmental conditions, we recommend the use of OFFROAD glide shoes with 80 % higher wear volume.
Calculating the cable carrier length
Cable carrier length LK: LK ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <th class="hgdashoffroad"><strong>h<sub>G'</sub> Offroad</strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">125</td> <td class="hi red">69</td> <td class="hg">96</td> <td class="hgdash">99.5</td> <td class="hgdashoffroad">103</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 100 - 800 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 45</td> <td class="bef">Bi + 45</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">4.14 – 8.48</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
180 220 260 300 340 380 500

Order example

MC1250
Type
•
400
Bi [mm]
•
RM
Stay variant
•
300
KR [mm]
-
4250
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

Divider systems

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS).

As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A102015–

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		aT max
[mm]		ax min
[mm]		ac min
[mm]		nT min
A6251282

The dividers can be moved in the cross section.

Divider system TS2
with partial height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A721152

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 4 mm).

Order example

TS2
Divider system
•
A
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1 – TS2) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 54 Nm for cheese-head screws ISO 4762 - M10 - 8.8

Connection point
F – fixed point
M – driver

Connection type
U – universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection

Connection surface
I – connection surface inside
A – connection surface outside

Order example

Plastic/steel
Plastic/steel

End connector

F
M

Connection point

A
A

Connection type

A
I

Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
