MC1250 RMAO

MC1250 RMAO

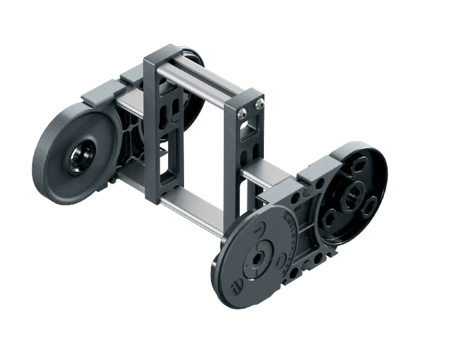

Aluminum stay RMAO – mounting frame stay

Properties

  • Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
  • The mounting frame stay is mounted on the outside in the bending radius.
  • Available customized in 1 mm width sections.
  • Outside: Screw-fixing easy to release.

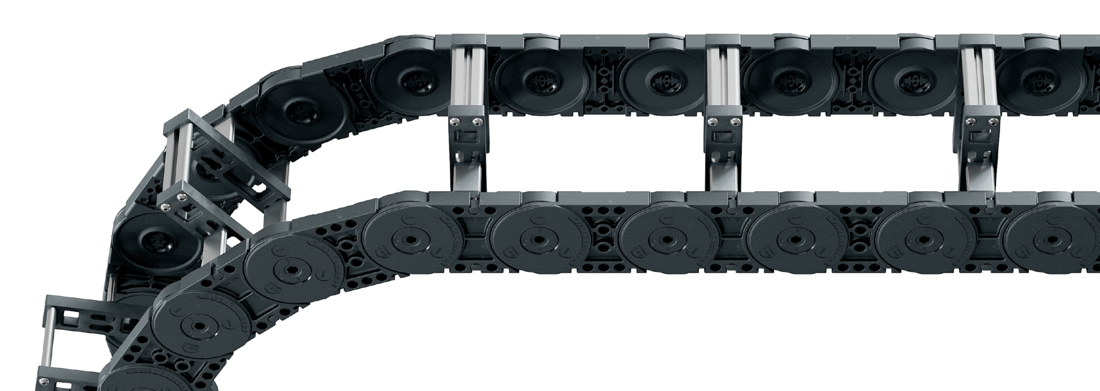

Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 200 - 800 mm in 1 mm width sections

Dimensions Dimensions

<p>The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.</p>
<p><strong>Intrinsic cable carrier weight</strong><br />Determining the intrinsic cable carrier weight strongly depends on the selected stay arrangement. Please contact us.</p>
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <th class="bi1"><strong>B<sub>i1</sub> min</strong><br>[mm]</th> <th class="bi3"><strong>B<sub>i3</sub> min</strong><br>[mm]</th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">125</td> <td class="hi red">72</td> <td class="hg">96</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 200 - 800 </td> <td class="bi1">40</td> <td class="bi3">40</td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 45</td> <td class="bef">Bi + 45</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk"></td> </tr> </tbody> </table>
* in 1 mm width sections
Hi [mm]
130 160 200
KR [mm]
180 220 260 300 340 380 500

Order example

MC1250
Type
•
400
Bi [mm]
•
RMAO
Stay variant
•
300
KR [mm]
-
4250
Lk [mm]
HS
Stay arrangement

RMAO – assembly to the outside:

The cable carrier has to rest on the side bands and not on the stays.
Guiding in a channel is required for support.
Please contact our technical support at technik@kabelschlepp.de to find the corresponding guide channel. Please note the operating and installation height.

End connectors End connectors

Recommended tightening torque: 54 Nm for cheese-head screws ISO 4762 - M10 - 8.8

Connection point
F – fixed point
M – driver

Connection type
U – universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection

Connection surface
I – connection surface inside
A – connection surface outside

Order example

Plastic/steel
Plastic/steel

End connector

F
M

Connection point

A
A

Connection type

A
I

Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
