M0320
M0320
Pitch
32 mm
32 mm
Inner height
19 mm
19 mm
Inner widths
25 - 280 mm
25 - 280 mm
Bending radii
37 - 200 mm
37 - 200 mm
Stay Variants
MC0320 01
more details
MC0320 02
more details
ME0320 RE
more details
Stay Variants

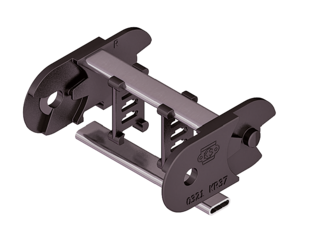

MC0320 01
Frame stay detachable inside
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Inside: release by turning by 90°.

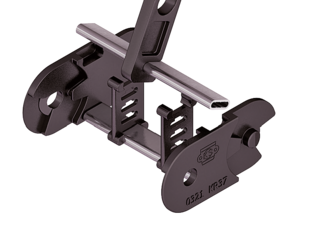

MC0320 02
Frame stay detachable outside "the standard"
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Outside: release by turning by 90°.

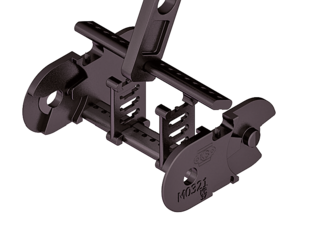

ME0320 RE
Frame screw-in stay
- Plastic profile bars for light to medium loads. Assembly without screws.
- Inside/outside: release by turning by 90°.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 37 | 101.5 | 121.5 | 181 | 83 |
| 47 | 121.5 | 141.5 | 212 | 93 |
| 77 | 181.5 | 201.5 | 306 | 123 |
| 100 | 227.5 | 247.5 | 379 | 146 |
| 200 | 427.5 | 427.5 | 693 | 246 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.54 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 2.8 m
Additional load
up to 2.5 kg/m
GLIDING ARRANGEMENT
Speed
up to 2.5 m/s
Acceleration
up to 25 m/s2
Travel length
up to 80 m
Additional load
up to 2.5 kg/m
The gliding cable carrier must be guided in a channel.
